S-PARTS TC4 Titanium Mirror Plug Bolt M8 M10 RH/LH for Motorcycle

S-PARTS TC4 Titanium Mirror Plug Bolt M8 M10 RH/LH for Motorcycle

$6.90 USD
$6.90 USD
Promoção Esgotado
Frete calculado no checkout.
Color: Blue
Specification

The S-PARTS mirror plug bolt is designed for motorcycle mirror mounting and hole-sealing applications. It is suitable for mirror sensor ports or aftermarket installation points. Available in both right-hand (RH) and left-hand (LH) thread options, it provides broad compatibility across different motorcycle models and custom setups, ensuring a secure and reliable installation solution.

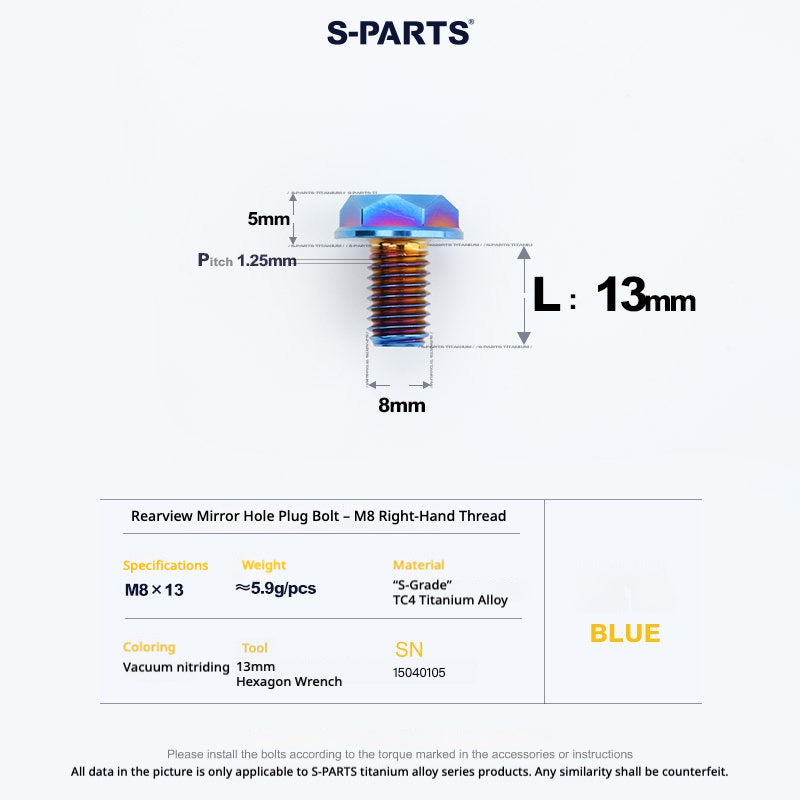

Available Specifications

  • Thread size: M8 / M10
  • Pitch: P1.25 / P1.5
  • Length: L13 / L20 / L25
  • Thread direction:
    • RH (Right-hand, standard)
    • LH (Left-hand, reverse thread)
  • Package: 1 piece

Please confirm thread size, pitch, length, and direction before ordering.

Color Options
Gold, Titanium, Black, Blue, Green, Purple, Candy
(Please specify color when ordering)

Material & Performance
Made from S-grade TC4 titanium alloy, offering tensile strength comparable to 10.9-grade high-strength steel while significantly reducing weight. This achieves an excellent strength-to-weight ratio, ideal for high-end motorcycle customization and precision applications.

Manufacturing Process

  • Hot-forged bolt head using S-PARTS custom molds
  • High-temperature forging at 650°C with each mold limited to 300 cycles to ensure dimensional accuracy
  • Military-grade CNC precision machining with micron-level tolerance control for reliable thread accuracy and fitment

Surface Treatment

  • Vacuum treatment + anodized coloring process
  • Enhanced corrosion and wear resistance
  • Color deeply penetrates the surface for long-lasting durability
  • Resistant to rain, mud, and harsh riding conditions

Fitment
Suitable for motorcycle mirror mounting, aftermarket hole plugging, and sensor port replacement applications across a wide range of custom builds.

Installation Note
Please confirm thread direction (RH or LH) before purchase. If unsure, professional installation is recommended to ensure proper fitment and safety.

Important Notice
This is a premium aftermarket titanium motorcycle modification part and is not an OEM component supplied by any motorcycle or bracket manufacturer.

Warning

Compatibility Check: Due to the complexity of original equipment manufacturer (OEM) parts' models and batches, there may be instances where this product is incompatible.

Upon receiving this product, please compare it with the OEM specifications to ensure compatibility before installation.

Torque Specifications: Install this product strictly according to the torque values specified in the OEM parts manual.Installation Issues: If you encounter any discrepancies with the OEM specifications or face difficulties at the initial stage of installation, stop immediately and contact customer service for assistance with returns or exchanges.

No Forced Installation: Do not force installation under any circumstances.Liability: Any damages resulting from forced installation or unauthorized modifications of this product (or its components) will be the sole responsibility of the buyer.

About Color Variations

All products are photographed to accurately represent the colors you will see upon receipt.

Due to differences in lighting, angles, or screen settings, slight color variations may occur.

The actual product should be considered the standard.For "colored" and "blue" products, the coloring process may result in uneven color distribution, making each product unique.

S-PARTS Common Torque Reference Table for Motorcycle series
