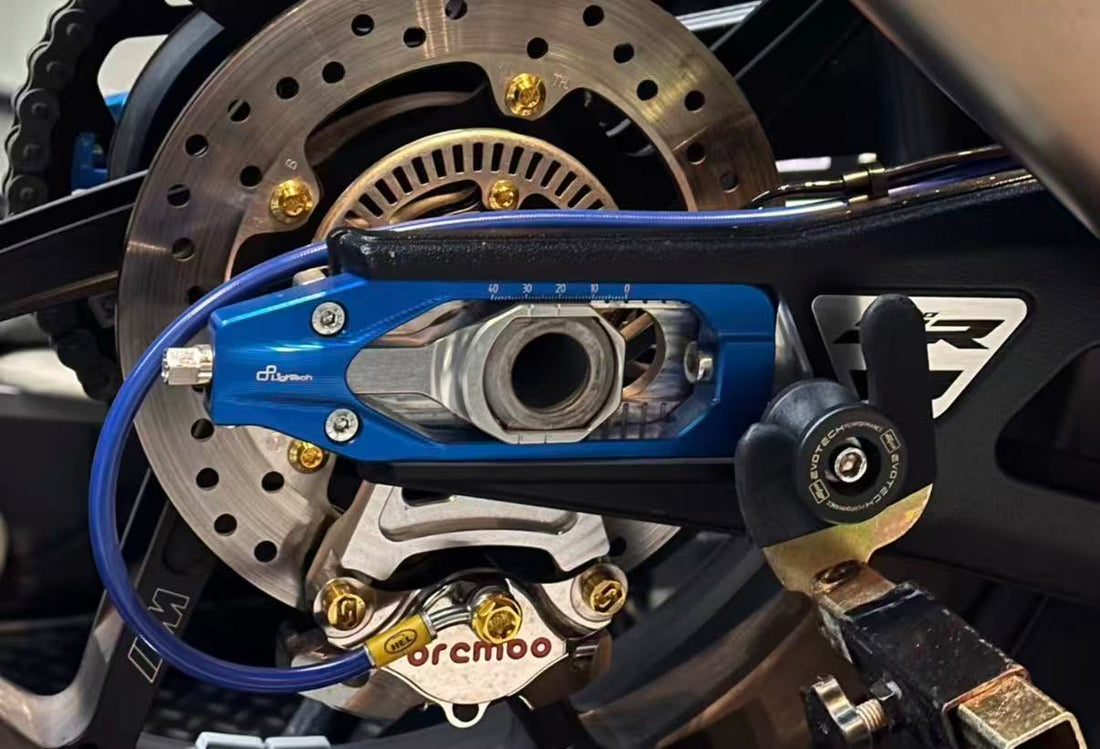

BMW S1000RR Titanium Bolts Torque Specs & Complete Anti-Seize Guide

However, upgrading motorcycle hardware is a game of precise science. Due to the differences in physical properties between titanium and the BMW OEM aluminum or magnesium alloy frames and casings, improper installation can easily lead to stripped threads, sheared bolts, or the catastrophic nightmare known as thread galling. This guide provides the definitive torque specifications for critical areas of the BMW S1000RR, along with a professional step-by-step anti-seize installation process.

1. BMW S1000RR Critical Component Titanium Bolts Torque Chart

When replacing fasteners in the braking, suspension, and drivetrain systems, never use electric or pneumatic impact guns. A calibrated torque wrench must be used to tighten everything crosswise and in gradual stages. The following data is referenced from the official BMW service manuals (optimized for common core specifications across generations of the S1000RR) and fine-tuned based on the elasticity and friction coefficients of Grade 5 titanium fasteners:

⚠️ Critical Technical Tip (Torque Derating Coefficient):

When you apply anti-seize paste or lubricant to the surface of titanium bolts, the friction between the threads drops drastically. If you blindly apply the official "dry" torque specs under lubricated conditions, you will over-stretch the bolt or strip out the aluminum frame threads due to excessive clamping force! The values in the table above have been adjusted for lubricated states. If using highly slick specialty greases, it is generally recommended to lower the factory dry torque by 10% to 15%.

2. The Core Pain Point: What is Titanium "Thread Galling"?

In hardware and motorcycle modification forums, the most common horror story involving titanium bolts is thread galling (essentially friction welding). When two reactive metals—such as a titanium bolt and the BMW OEM aluminum frame or magnesium engine case—are torqued down tightly without an insulating lubricant, micro-level friction and heat break down the protective oxide layer on the metal surfaces. The exposed metal atoms then bond directly to one another, fusing the bolt and the thread base into one piece.

Once galling occurs, the titanium bolt can neither be screwed in further nor backed out. Ultimately, the only solution is to use an alloy drill bit to drill out the entire bolt, which often ruins expensive OEM BMW engine casings or frames. Therefore, the golden rule of titanium hardware upgrades is: No lubrication, no installation.

3. Step-by-Step Anti-Seize Installation Guide for BMW S1000RR Titanium Bolts

To ensure every titanium fastener delivers peak performance and can be smoothly disassembled during future maintenance, strictly follow this shop-grade installation workflow:

Step 1: Deep Thread Cleaning

After removing the OEM steel bolts, factory medium-strength anaerobic threadlocker (Loctite) or oxidation residue often remains inside the threads. Spray Isopropyl Alcohol (IPA) or Brake Cleaner into the bolt holes and scrub thoroughly with a fine brass wire brush or cotton swabs. Ensure the thread base is completely clean, dry, and free of debris.

Step 2: Select and Apply the Right Anti-Seize Compound

Choose the correct chemical barrier depending on the operating temperature of the area:

• Engine & Exhaust (High-Heat Zones): Nickel Anti-Seize or Copper Paste is highly recommended. These can withstand temperatures well over 1000°C, preventing galvanic corrosion between titanium and aluminum.

• Calipers, Chassis, & Fairings (Ambient Temp Zones): A dedicated titanium grease (such as a PTFE/Teflon-infused paste) works perfectly.

• Application Tip: Use a small brush to apply a thin, even coat of anti-seize to the first 2/3 of the bolt threads. Ensure the valleys of each thread are filled, but avoid excessive squeeze-out.

Step 3: Balancing Anti-Seize and Threadlocker

Many riders wonder: Aren't anti-seize (preventing binding) and threadlocker (preventing loosening) contradictory? In high-vibration, high-safety areas like brake rotor bolts and sprocket nuts, medium-strength threadlocker (such as Loctite 243) must take priority over anti-seize. Once cured, a high-quality anaerobic threadlocker effectively seals out air, which also prevents galvanic corrosion and galling.

Step 4: Iterative Crosswise Torquing

Hand-thread the bolt into the hole for at least 3 full turns to ensure it is not cross-threaded. Set your torque wrench to the target value. For components secured by multiple bolts (e.g., front axle pinch bolts or engine covers), always follow a star or diagonal sequence, stepping up the torque in three gradual stages (e.g., 40% → 70% → 100% of target torque) to ensure even mating pressure.

4. Summary: How to Choose Premium BMW S1000RR Titanium Bolts

Not all shiny metal fasteners are built for track-level safety. When sourcing hardware for a high-performance liter-bike, make sure your supplier checks these two boxes:

1. Cold Forged & Rolled Threads: Premium titanium bolts feature threads that are rolled onto the bolt shank under high pressure, rather than cut on a lathe (cut threads). Rolled threads maintain continuous internal grain structure, offering multiple times the fatigue resistance, wear tolerance, and a drastically reduced risk of galling during assembly.

2. Material Certification: Ensure the vendor can provide a legitimate material test report for Grade 5 / Ti-6Al-4V (TC4) aerospace-grade titanium alloy. Never substitute structural or load-bearing parts with low-strength commercially pure titanium (Grade 1/2).

By managing every torque detail correctly, your BMW S1000RR will shed weight while maintaining rock-solid mechanical stability.
