SPARTS M10 L12-120mm P1.25 A3 Series Standard Head Titanium Bolt | Motorcycle Upgrade

$9.90 USD

In offerta Esaurito

Spese di spedizione calcolate al check-out.

color: Gold

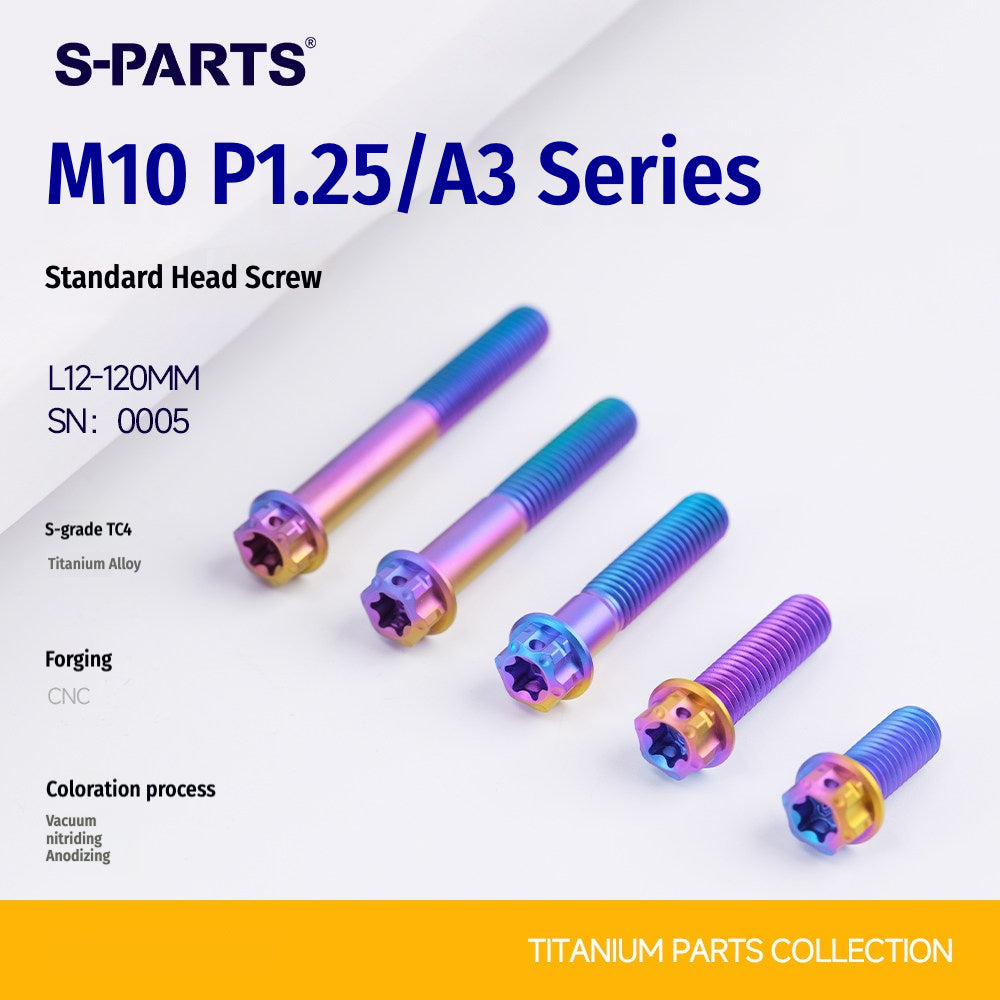

The SPARTS A3 Series M10×P1.25 standard-head titanium bolt is designed specifically for motorcycle and bicycle modification applications,

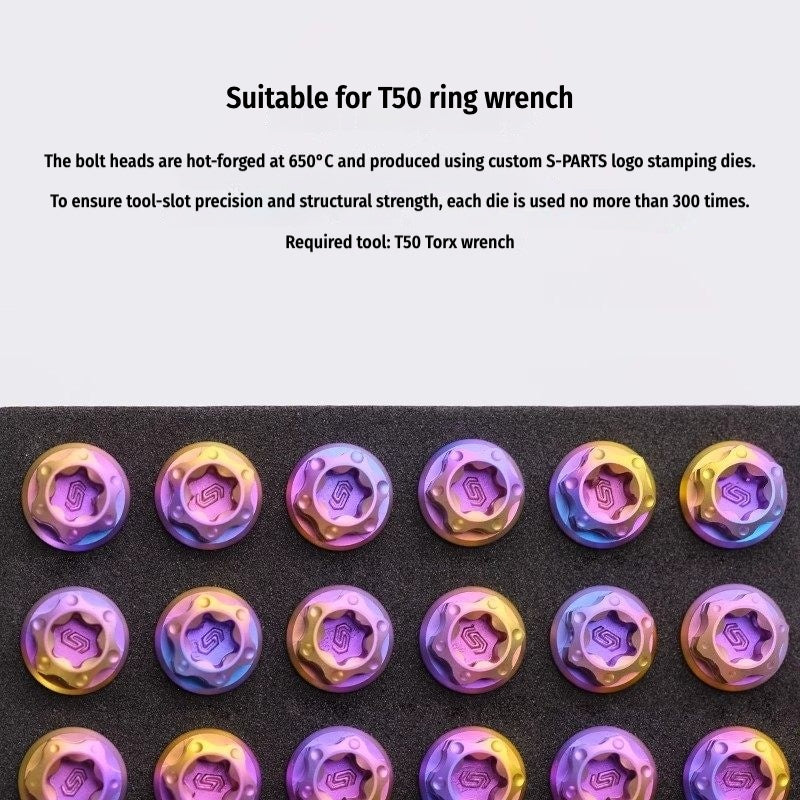

The bolt head is formed using a 650°C high-temperature forging process, combined with a custom SPARTS logo stamping die:

Each die is limited to a maximum of 300 uses
Ensures long-term precision of the drive recess
Maintains consistent structural strength and batch uniformity

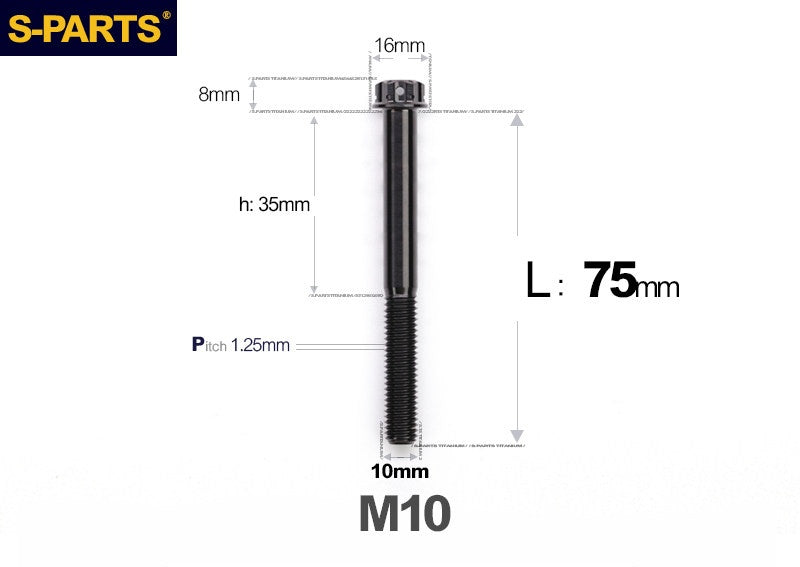

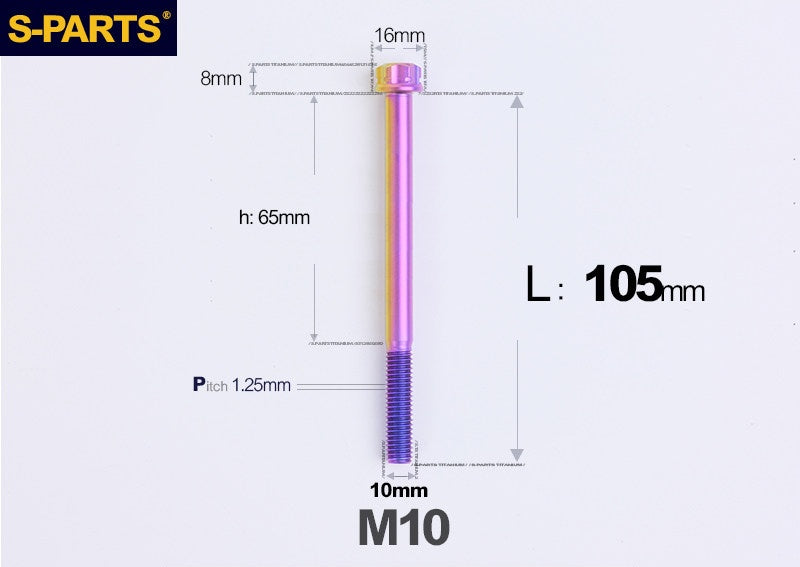

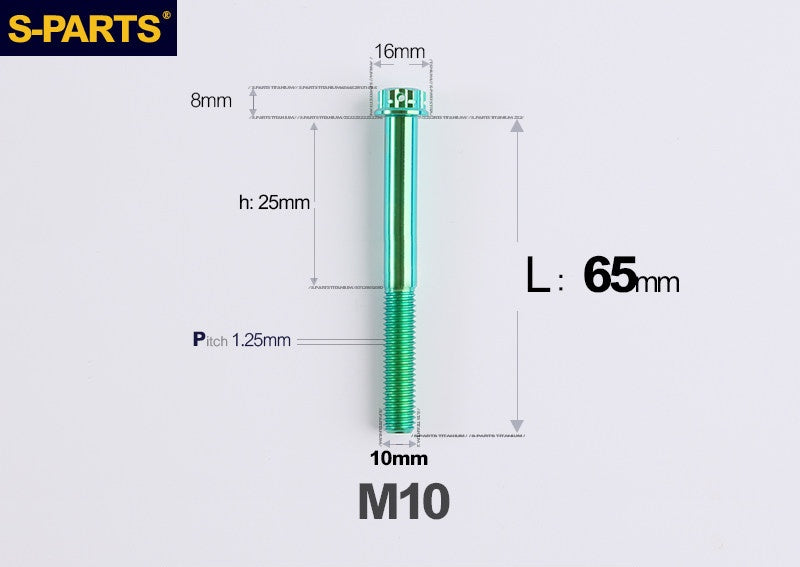

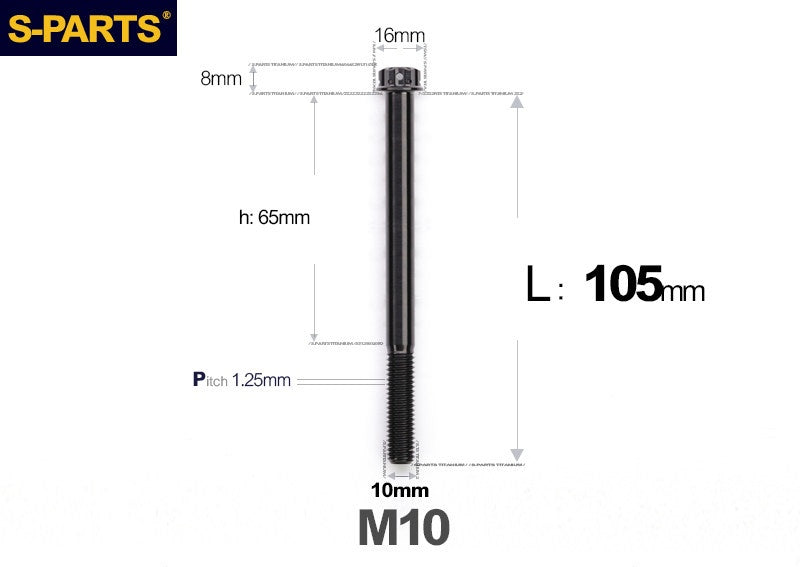

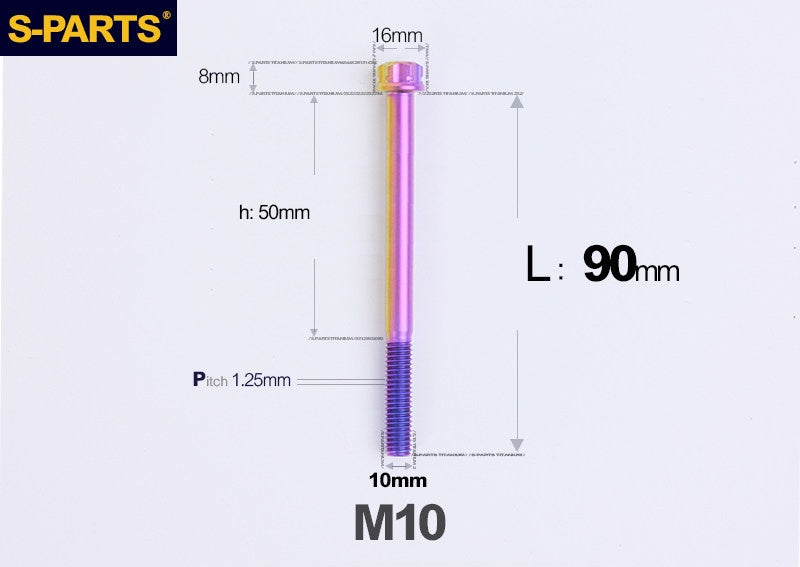

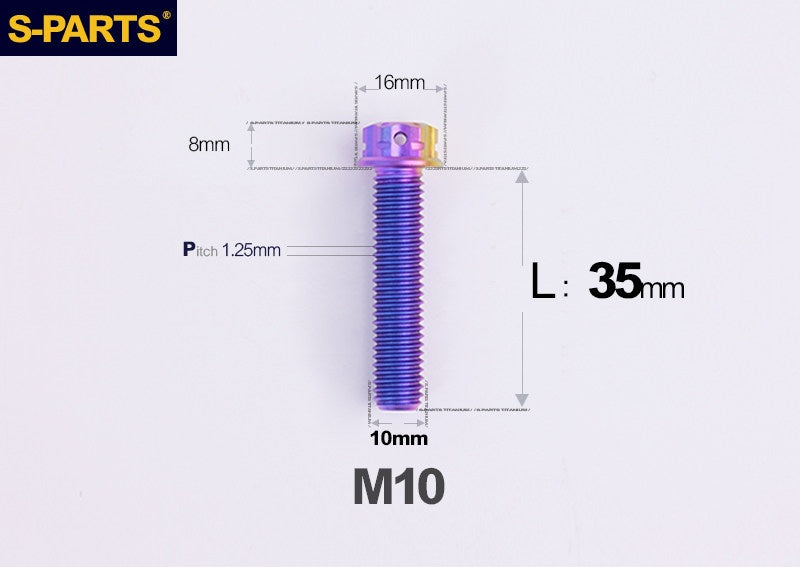

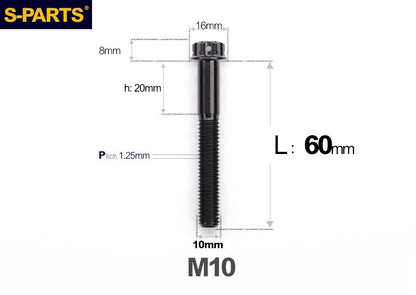

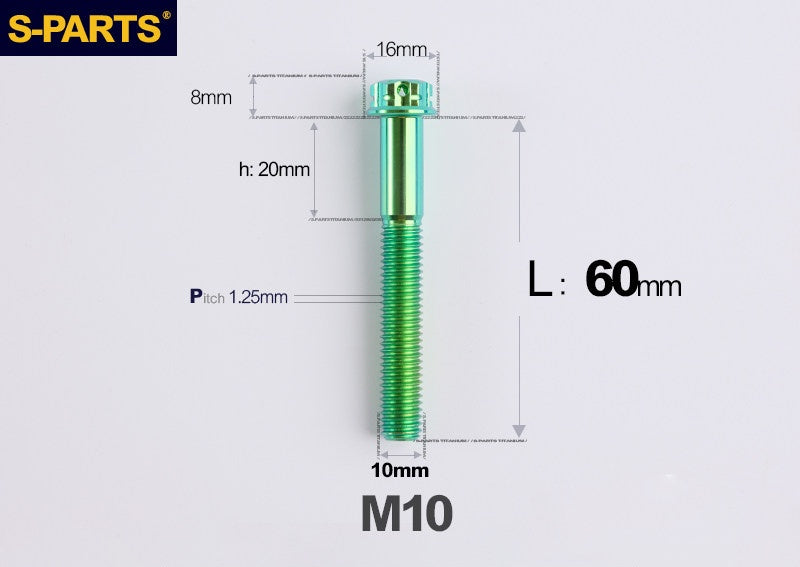

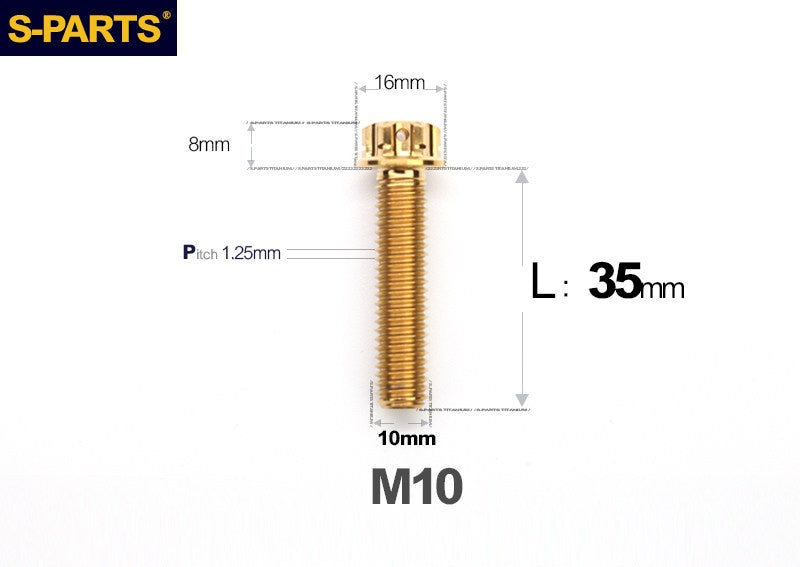

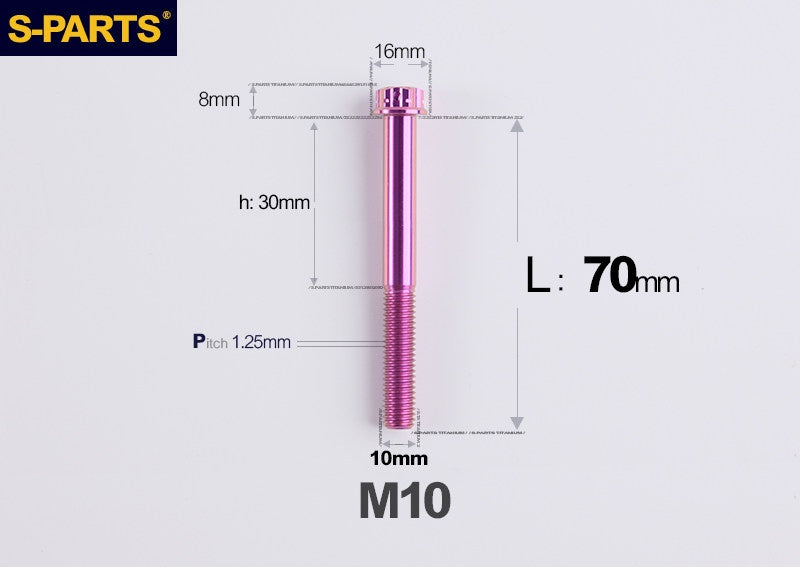

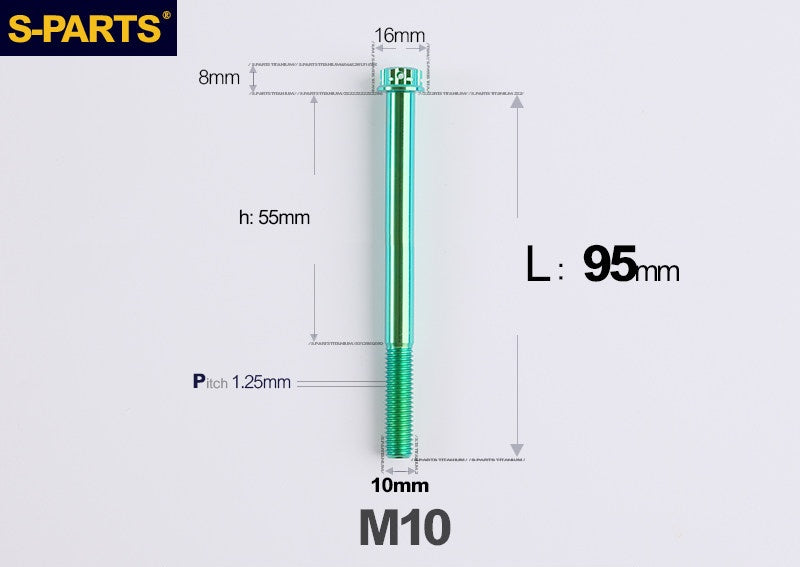

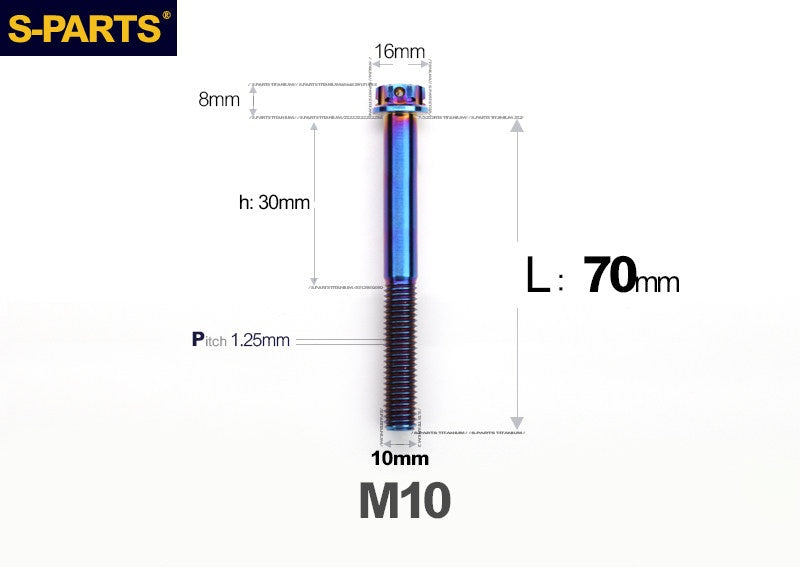

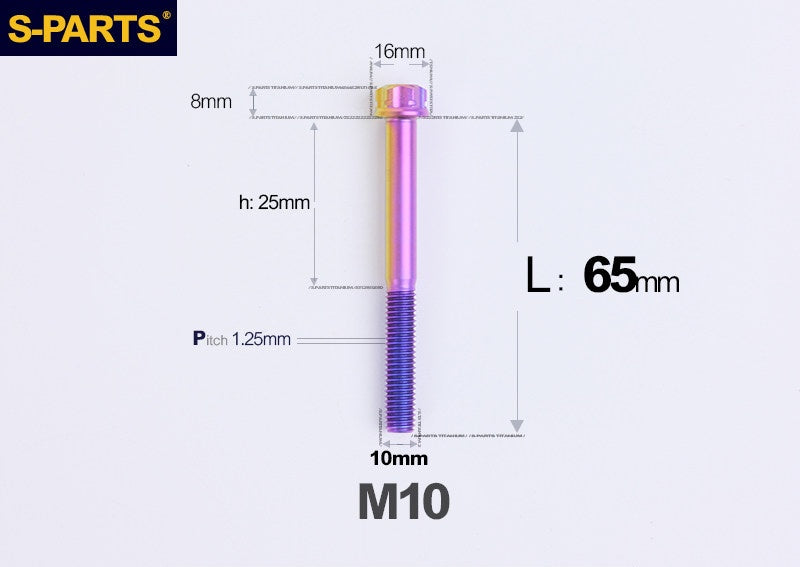

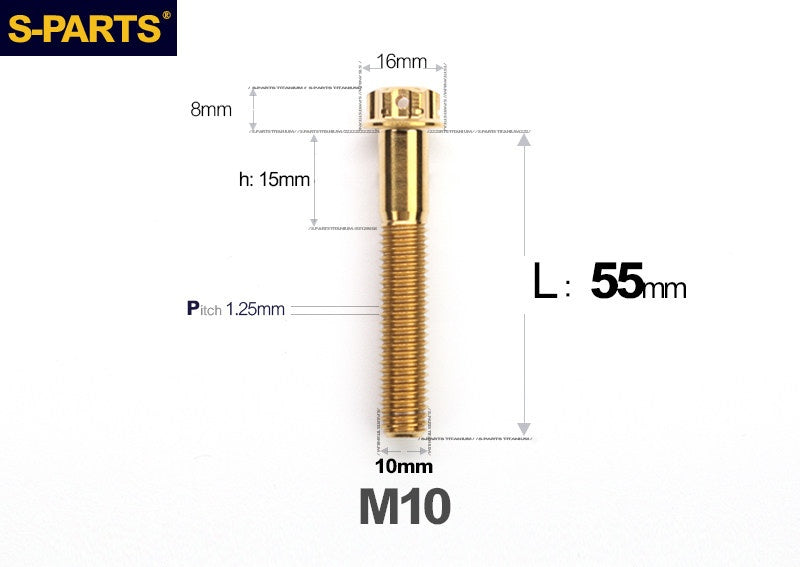

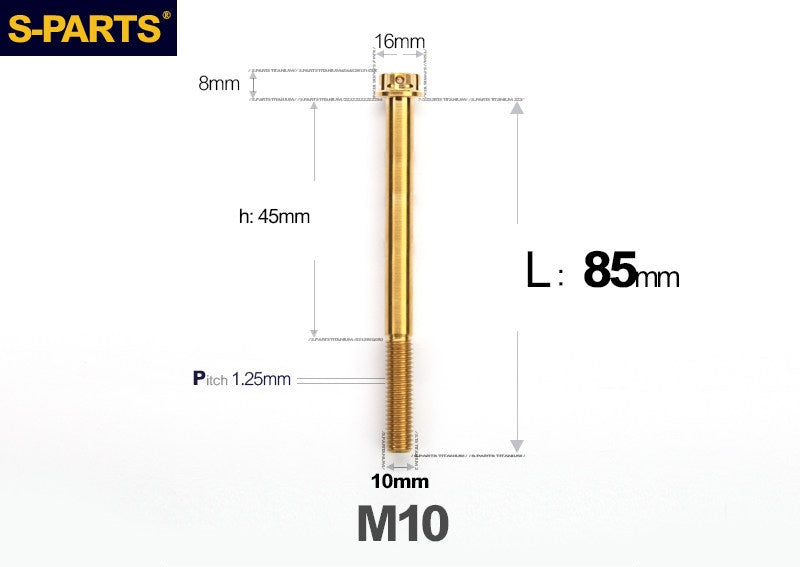

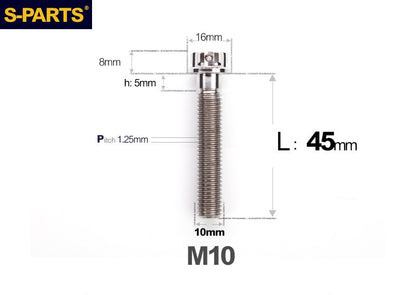

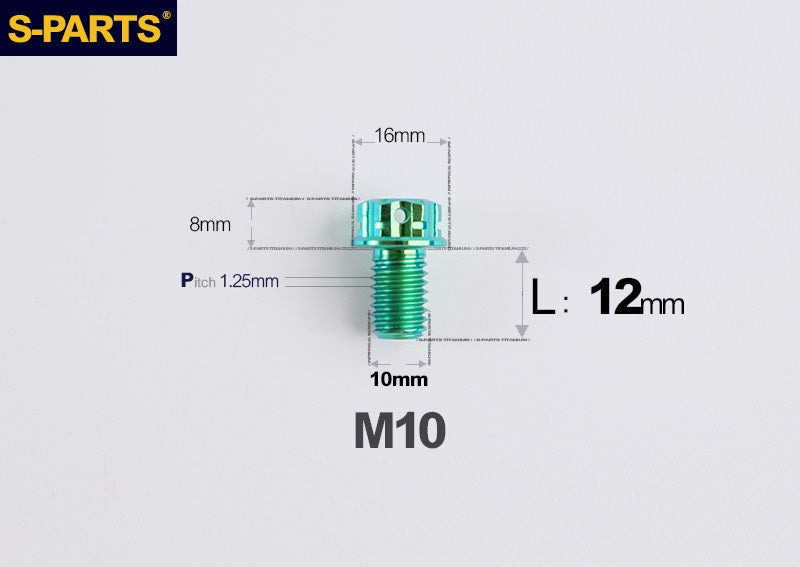

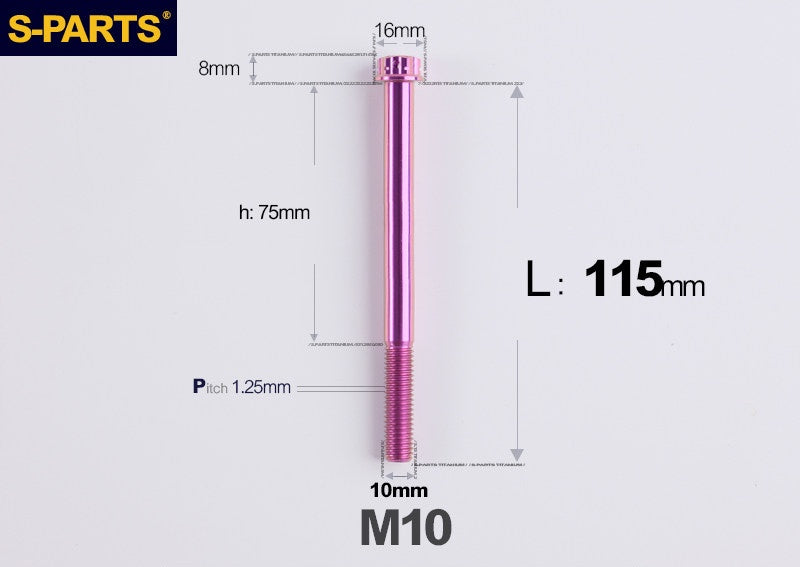

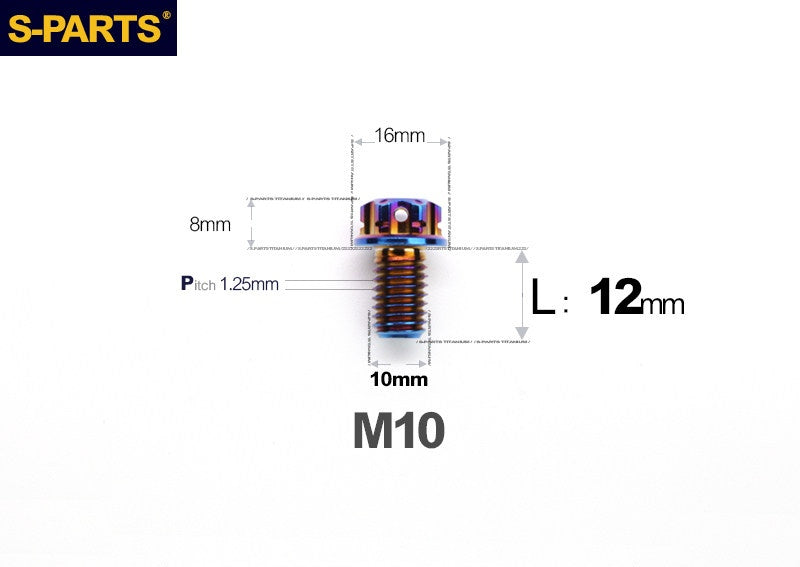

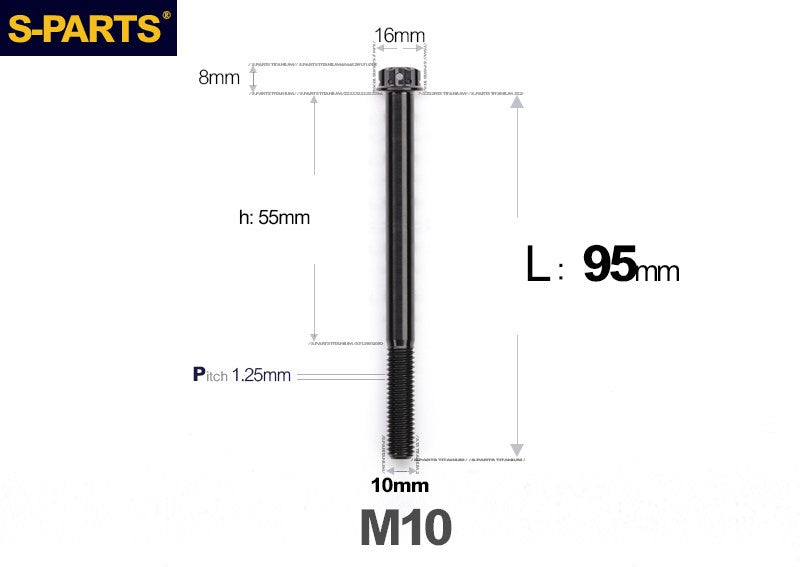

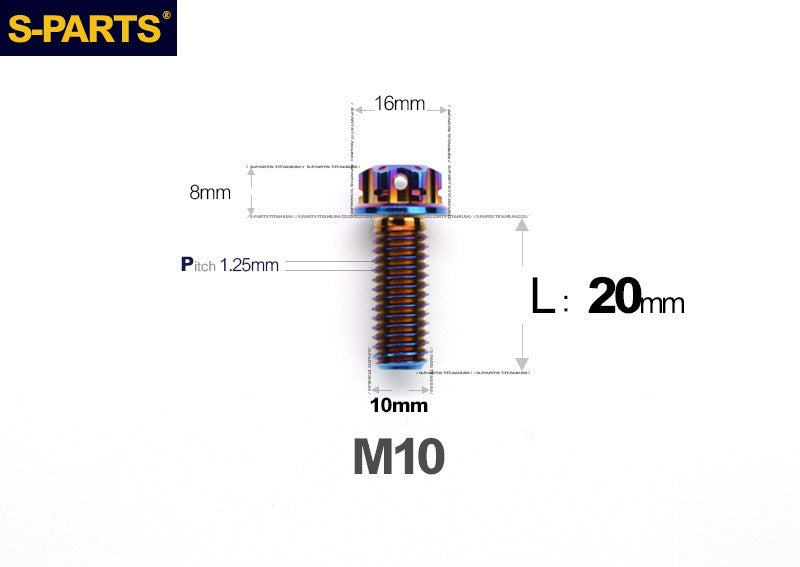

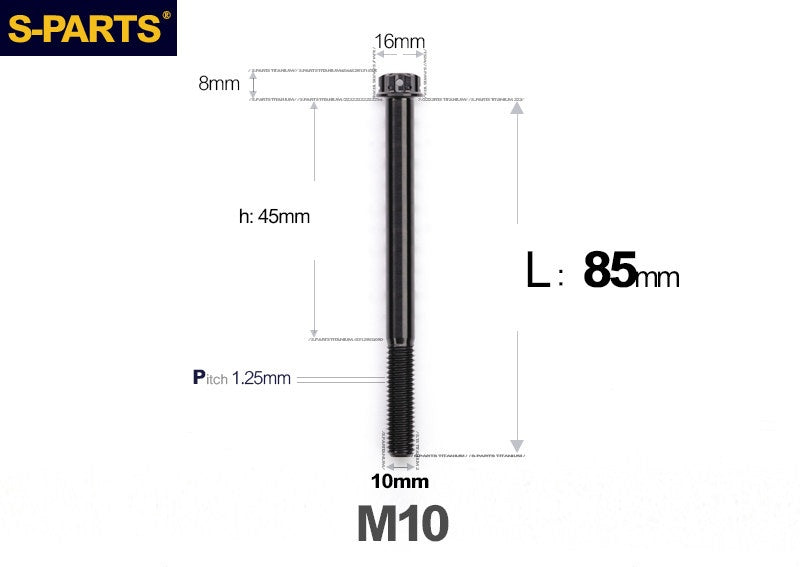

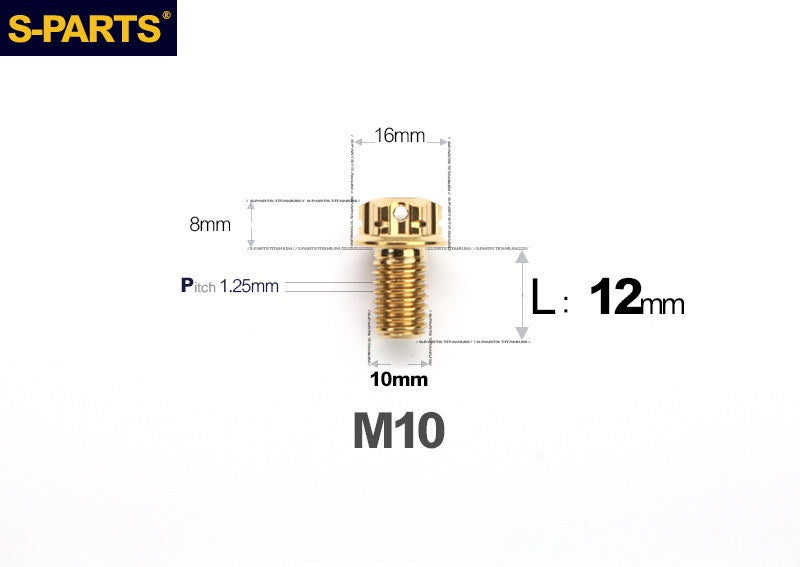

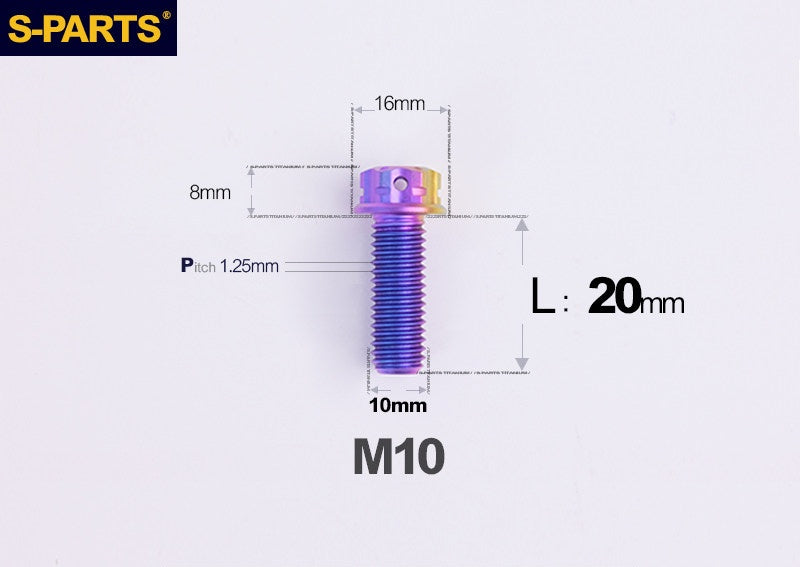

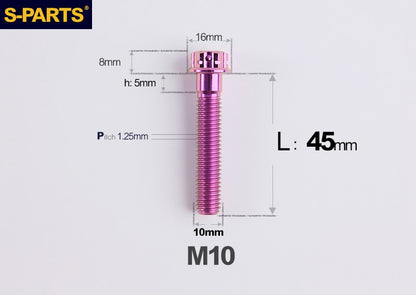

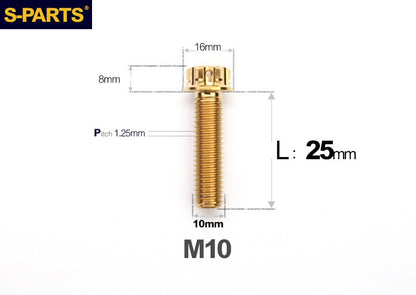

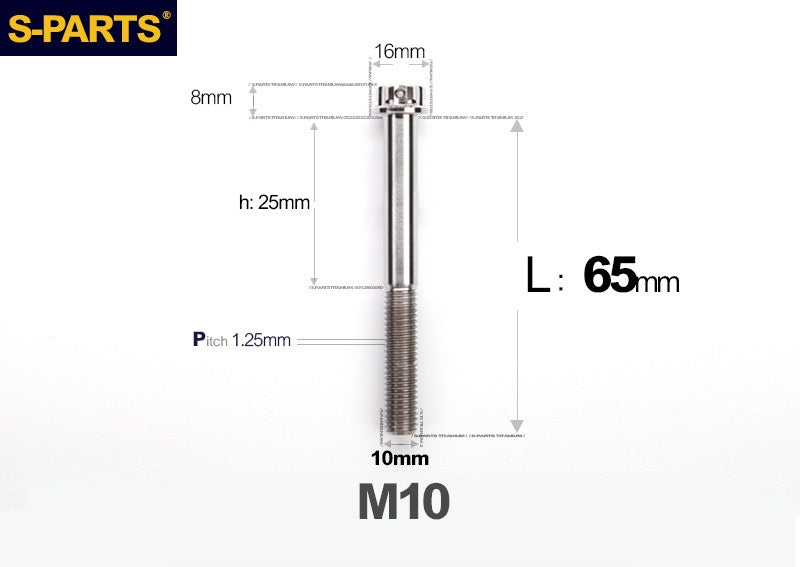

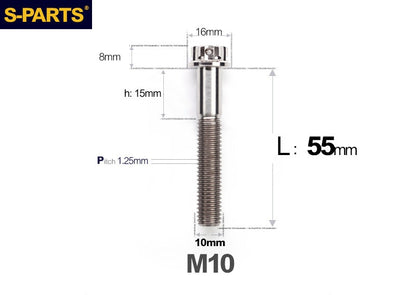

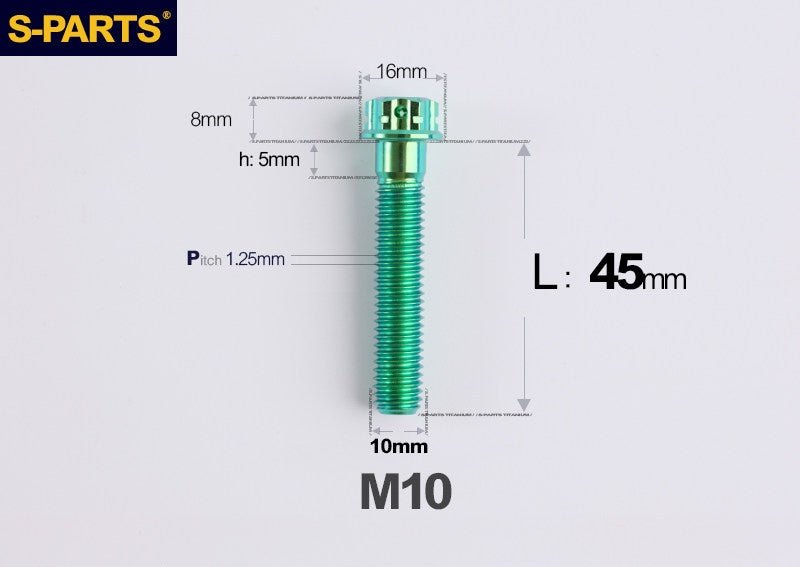

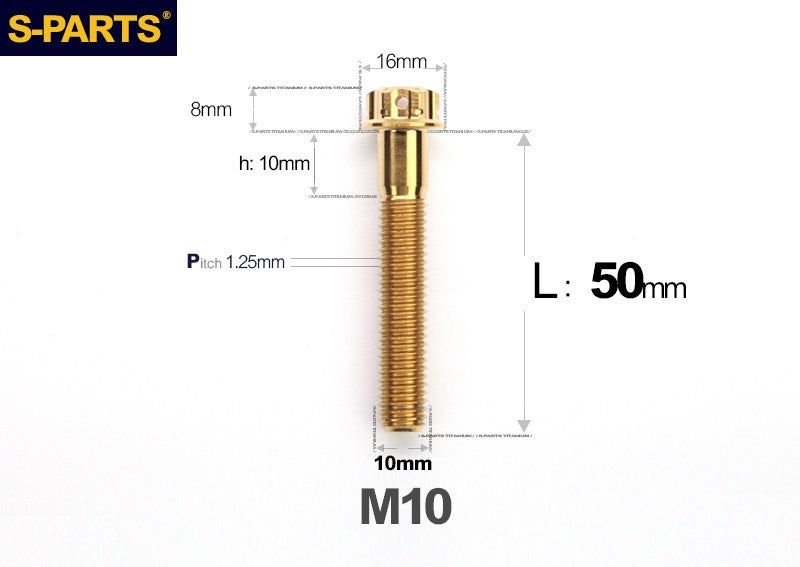

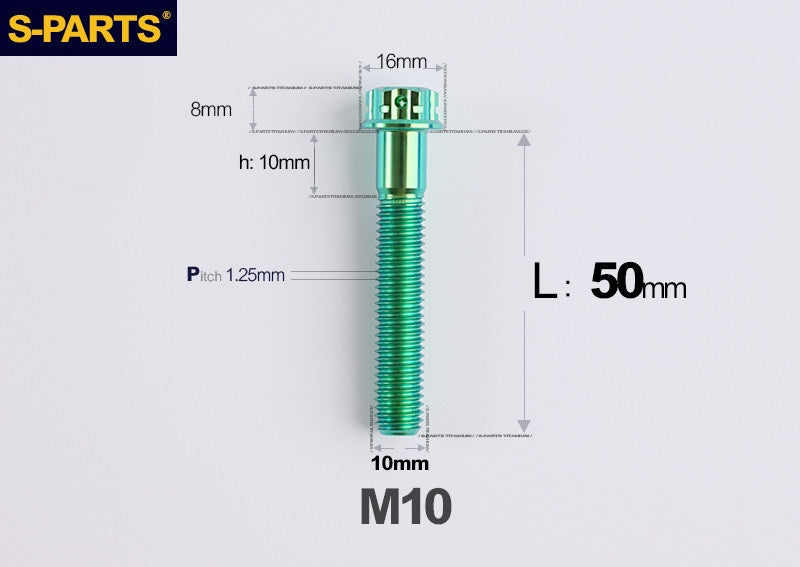

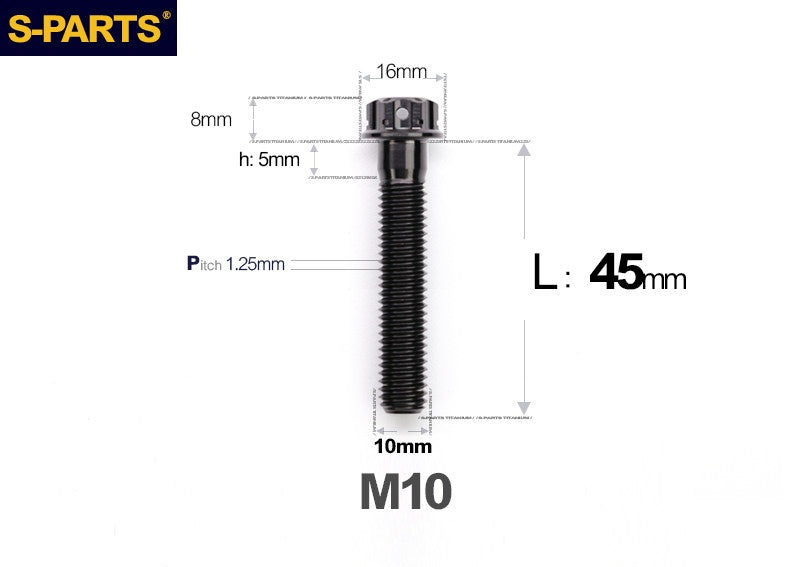

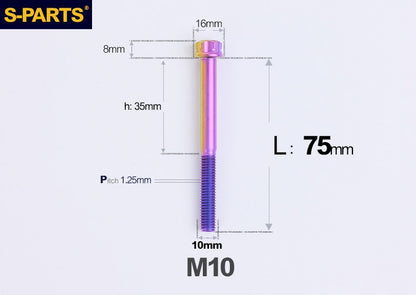

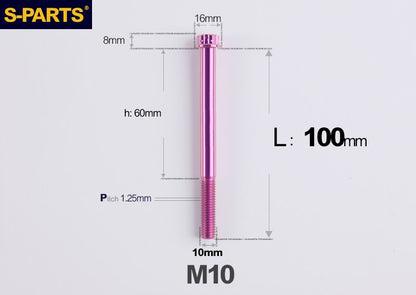

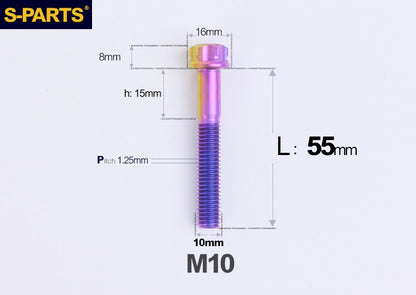

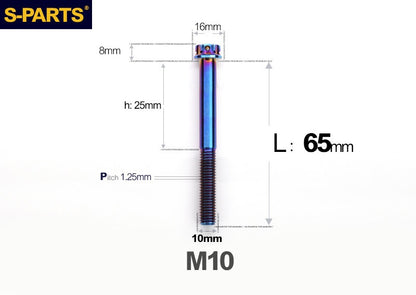

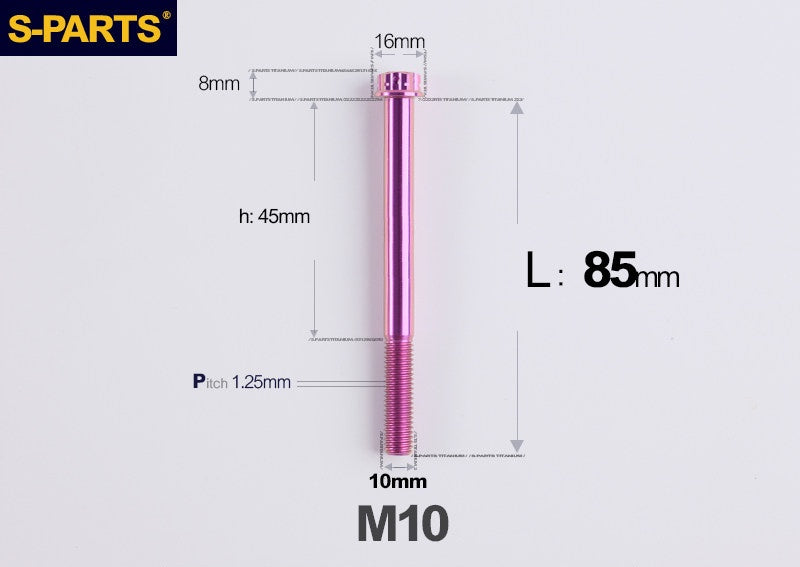

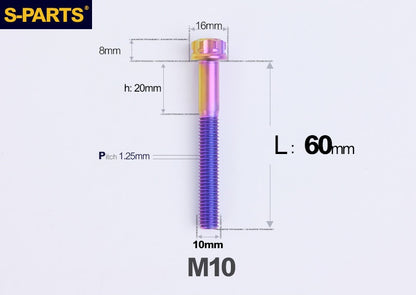

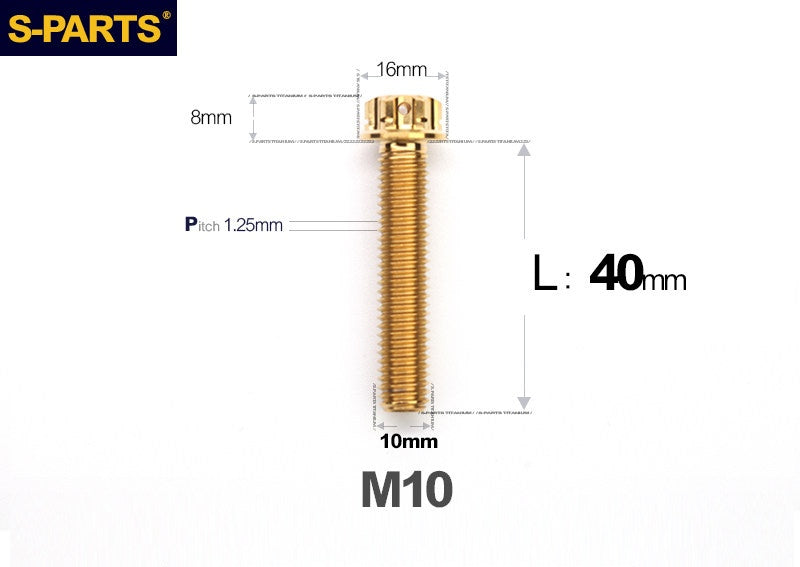

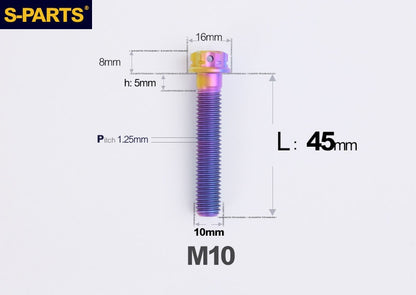

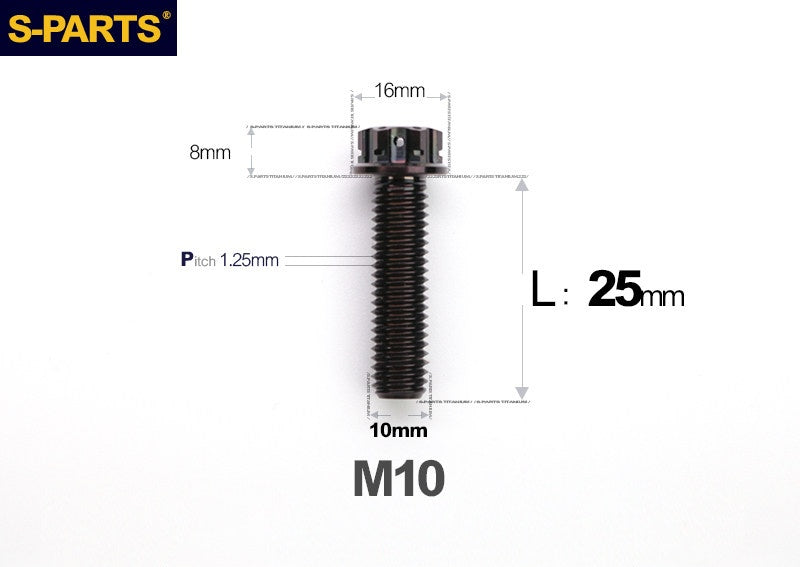

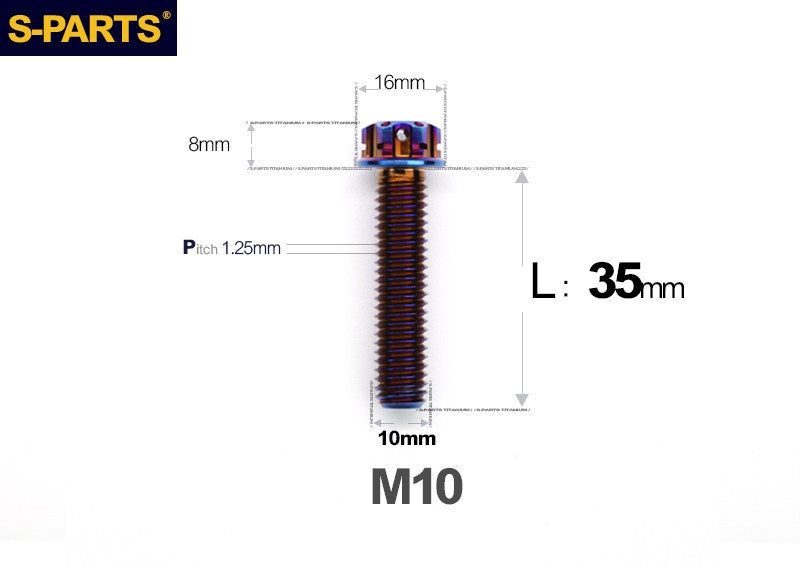

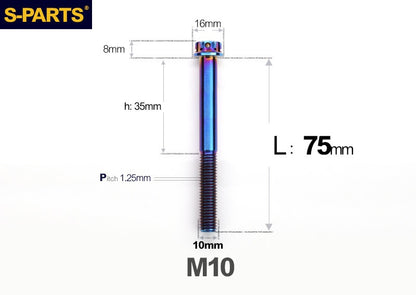

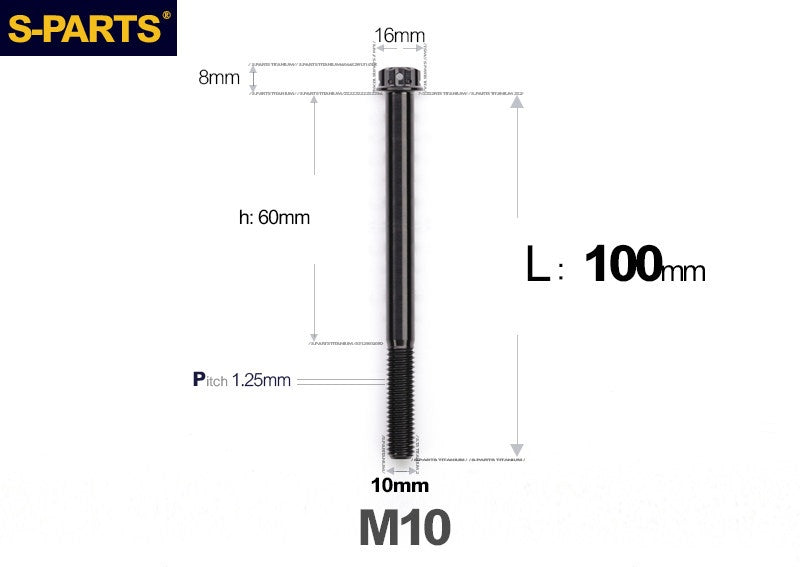

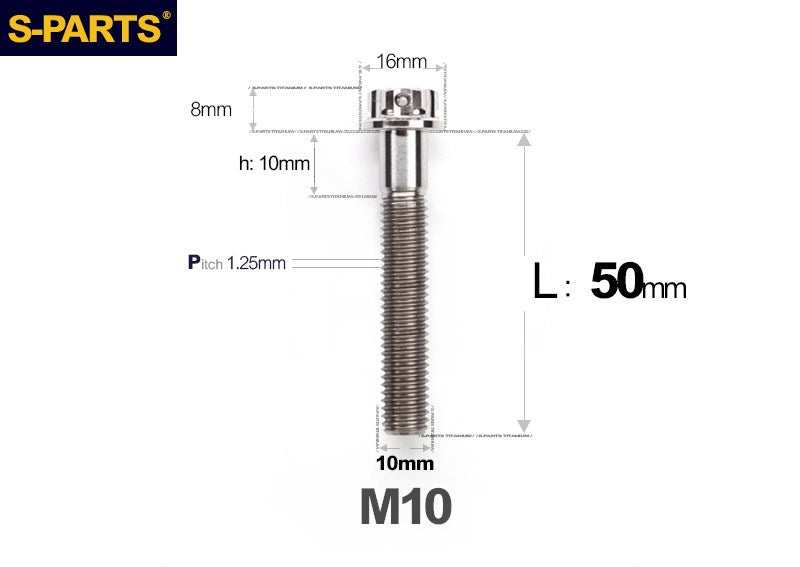

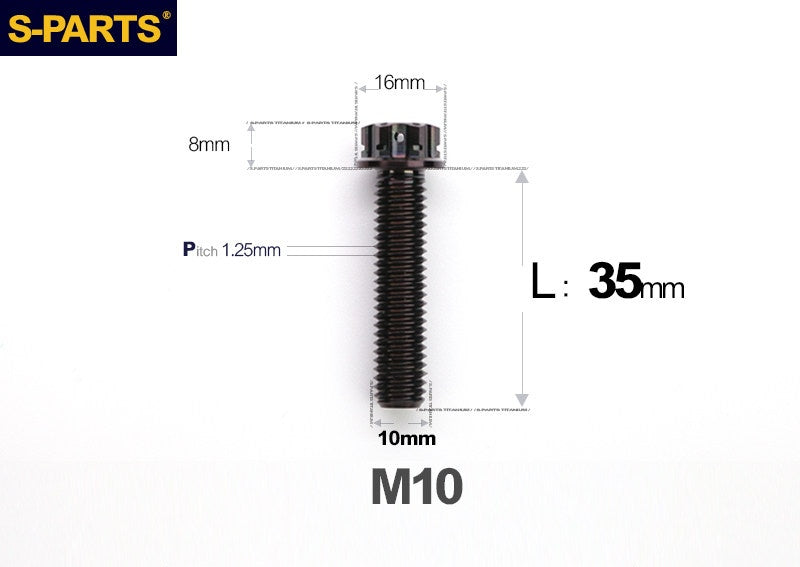

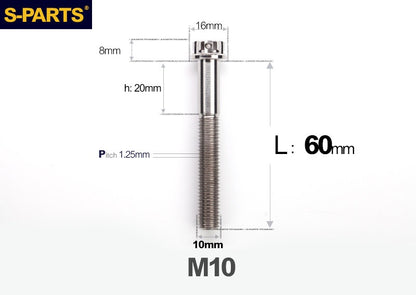

Dimensions & Weight (per bolt)

Length L (mm)	Head Diameter D (mm)	Head Height H (mm)	Weight (g/pc)
12	16	8	6.91
20	16	8	9.07
25	16	8	10.50
30	16	8	11.94
35	16	8	13.40
40	16	8	14.87
45	16	8	16.41
50	16	8	18.26
55	16	8	19.90
60	16	8	21.58
65	16	8	23.38
70	16	8	25.09
75	16	8	26.46
80	16	8	28.66
85	16	8	30.41
90	16	8	31.63
95	16	8	33.08
100	16	8	34.53
105	16	8	35.98
110	16	8	37.43
115	16	8	38.88
120	16	8	40.33

Warning

Compatibility Check: Due to the complexity of original equipment manufacturer (OEM) parts' models and batches, there may be instances where this product is incompatible.

Upon receiving this product, please compare it with the OEM specifications to ensure compatibility before installation.

Torque Specifications: Install this product strictly according to the torque values specified in the OEM parts manual.Installation Issues: If you encounter any discrepancies with the OEM specifications or face difficulties at the initial stage of installation, stop immediately and contact customer service for assistance with returns or exchanges.

No Forced Installation: Do not force installation under any circumstances.Liability: Any damages resulting from forced installation or unauthorized modifications of this product (or its components) will be the sole responsibility of the buyer.

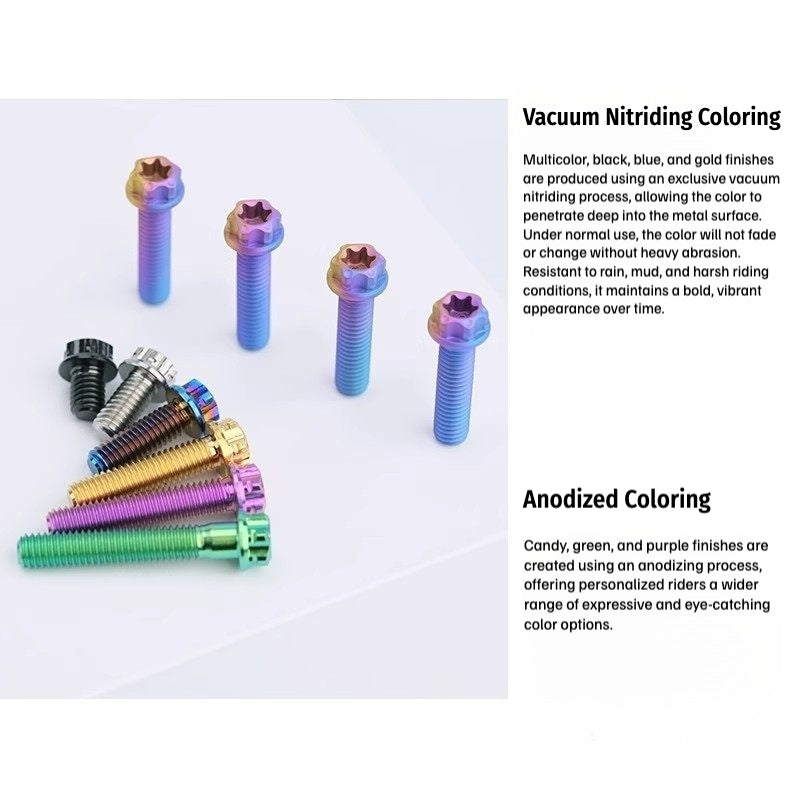

About Color Variations

All products are photographed to accurately represent the colors you will see upon receipt.

Due to differences in lighting, angles, or screen settings, slight color variations may occur.

The actual product should be considered the standard.For "colored" and "blue" products, the coloring process may result in uneven color distribution, making each product unique.
