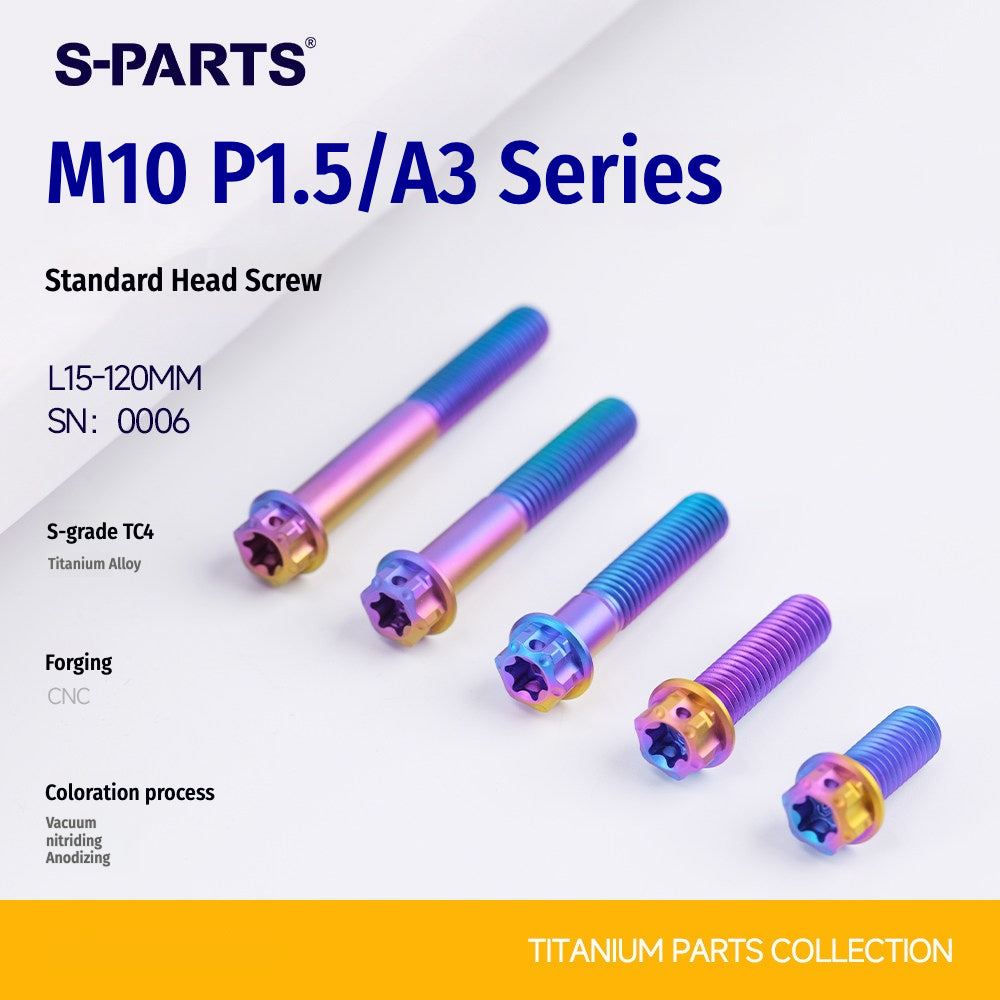

SPARTS M10 P1.5 L15-120 A3 Series Titanium Bolt – Standard Head

The SPARTS A3 Series M10 P1.5 standard head titanium bolt is designed for applications where fastening precision, structural strength, and long-term reliability matter.

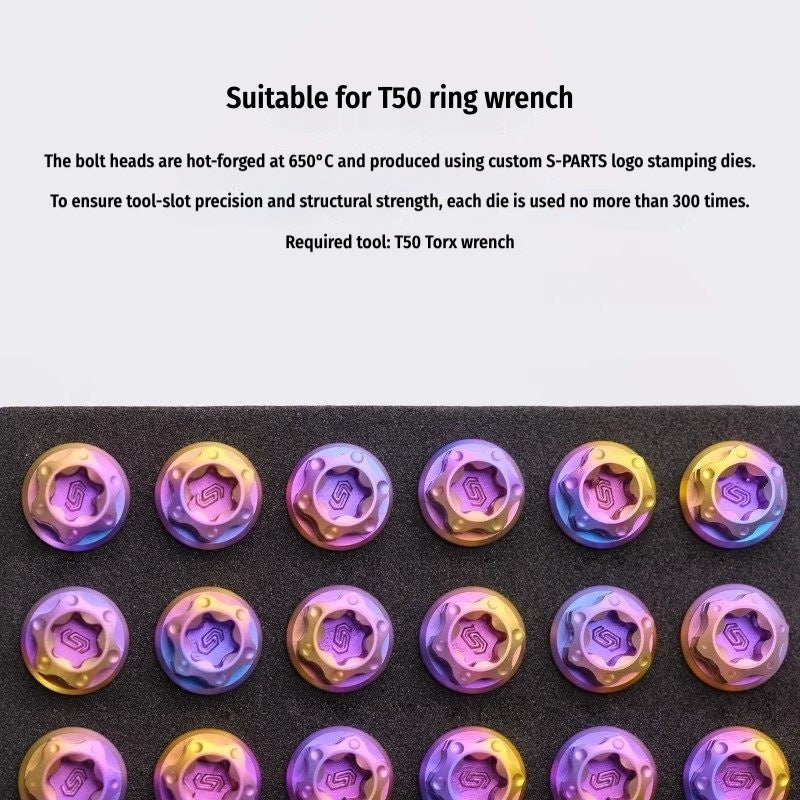

The bolt head is formed using a 650°C high-temperature forging process and finished with a custom S-PARTS logo stamping mold.

Each stamping mold is used no more than 300 times

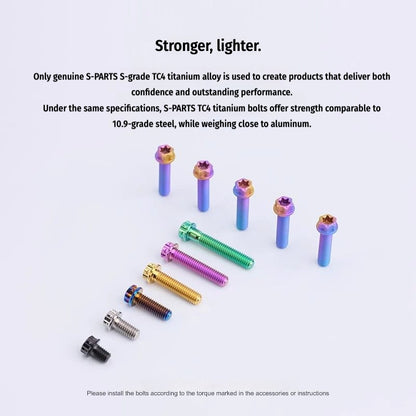

Manufactured from S-PARTS S-Grade TC4 titanium alloy (Ti-6Al-4V):

High strength with excellent corrosion resistance

Difficult to machine, requiring strict manufacturing control

Designed to deliver a reliable fastening solution with confident performance in demanding environments.

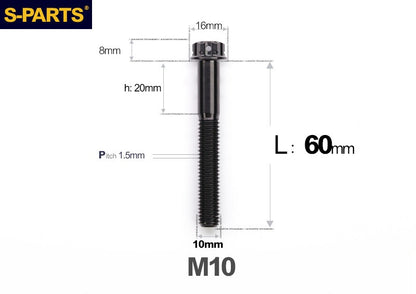

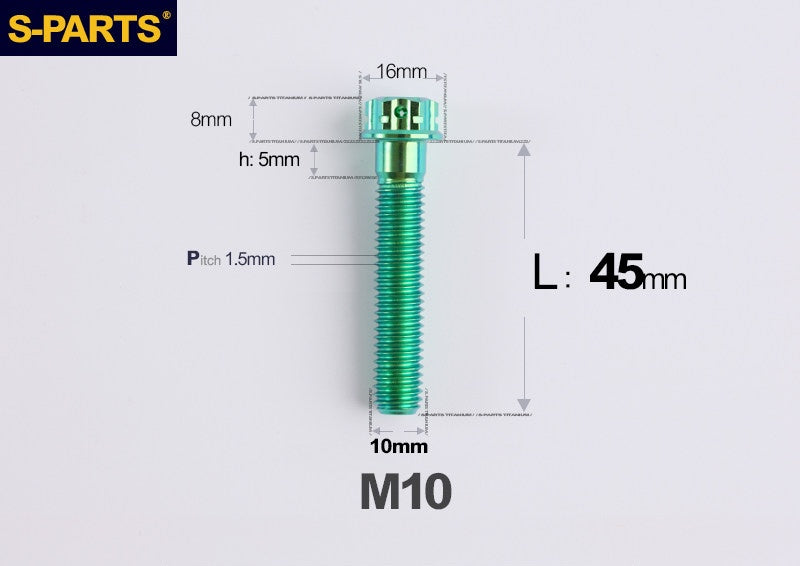

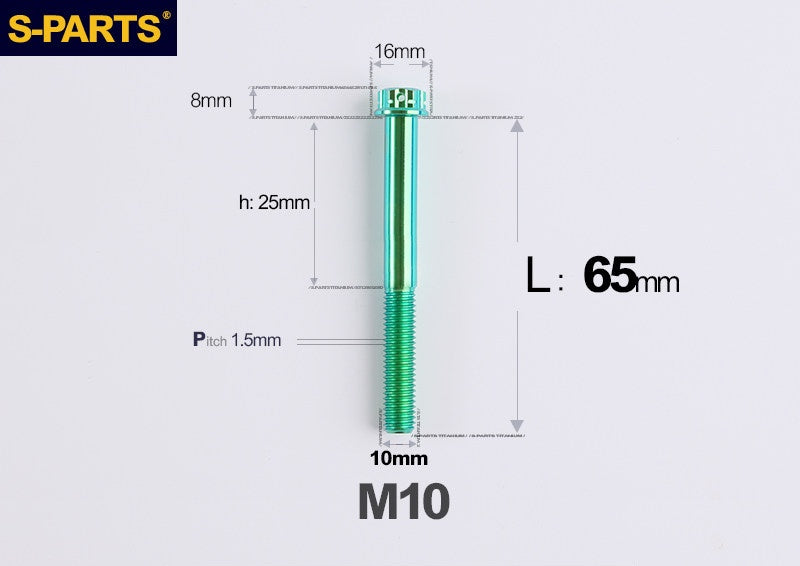

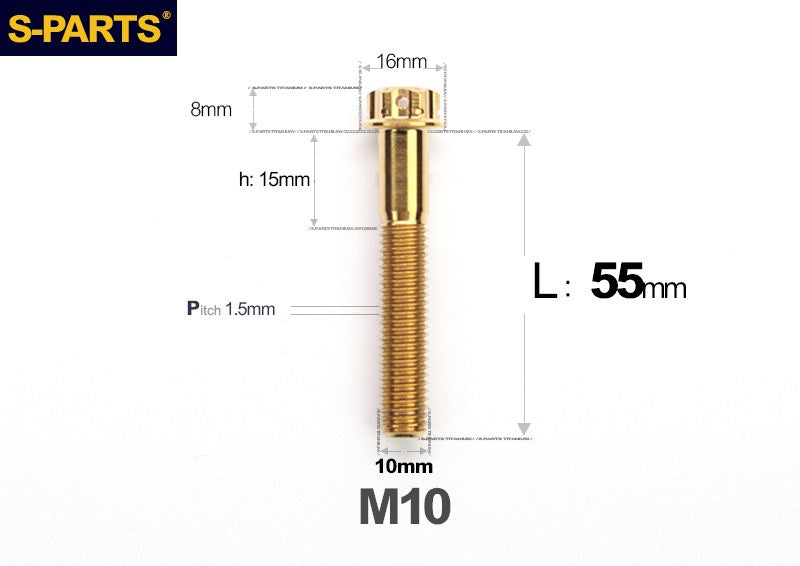

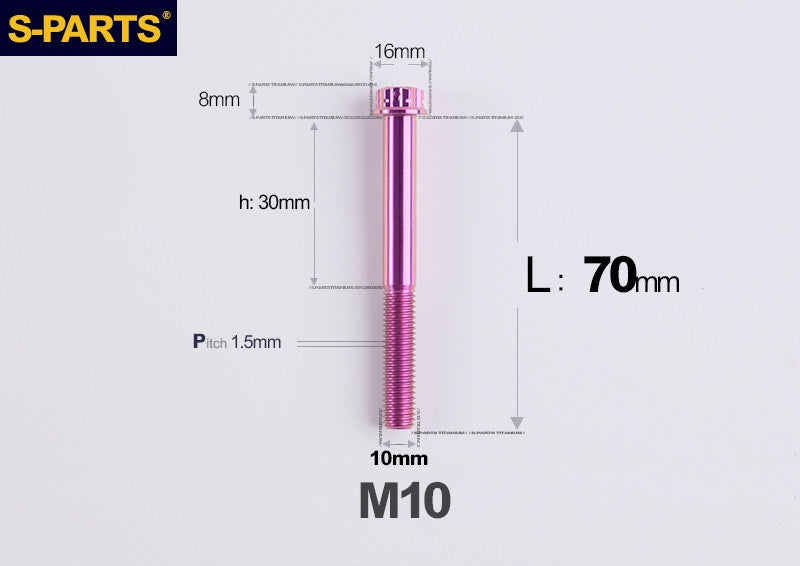

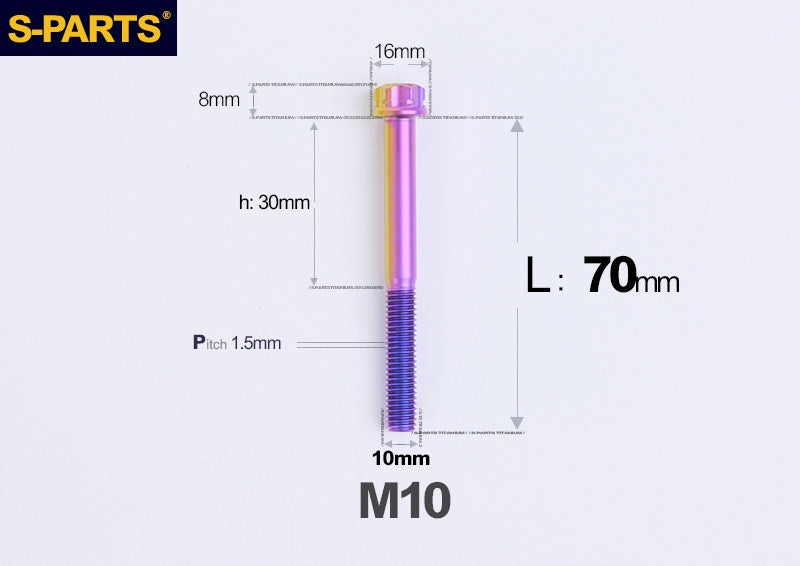

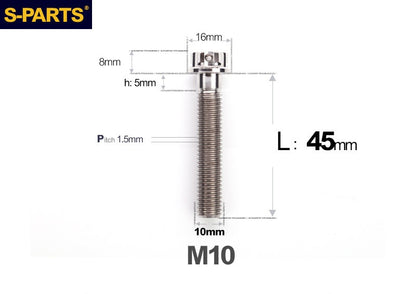

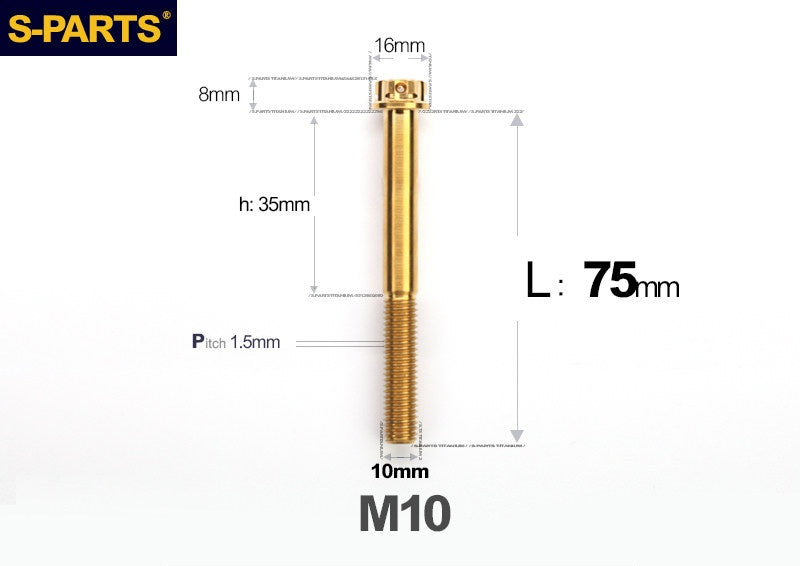

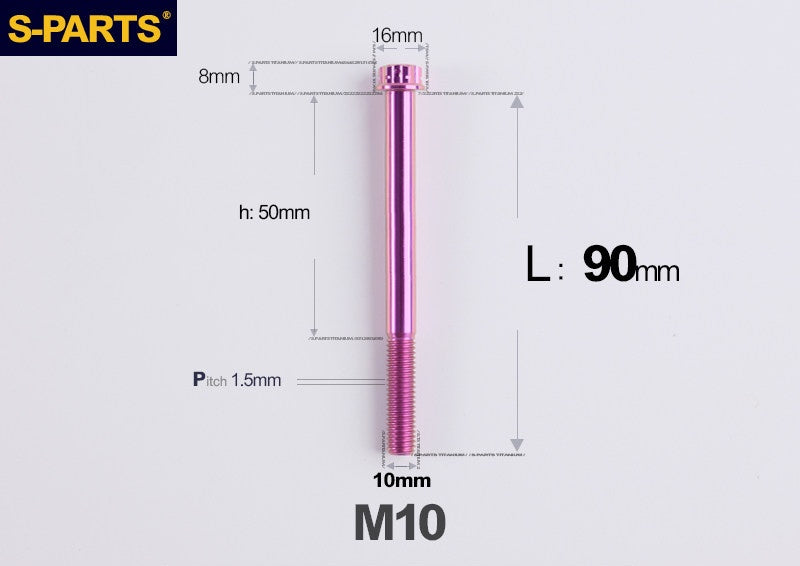

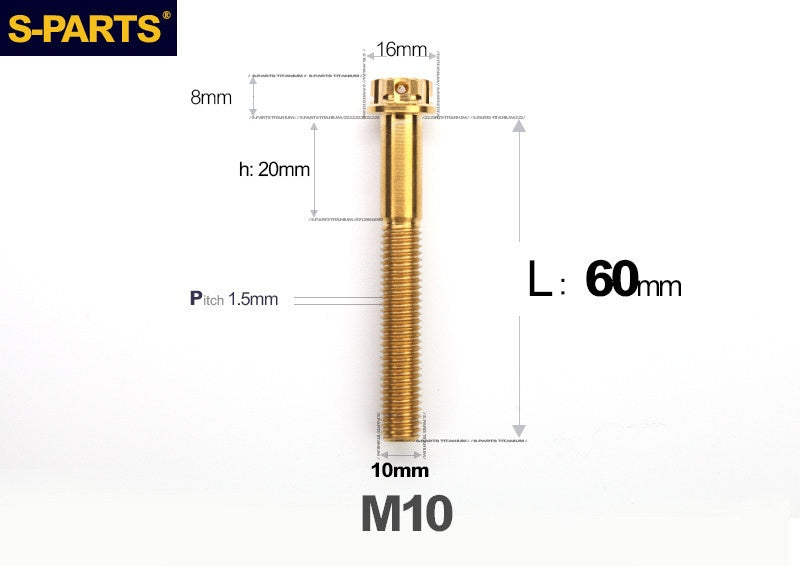

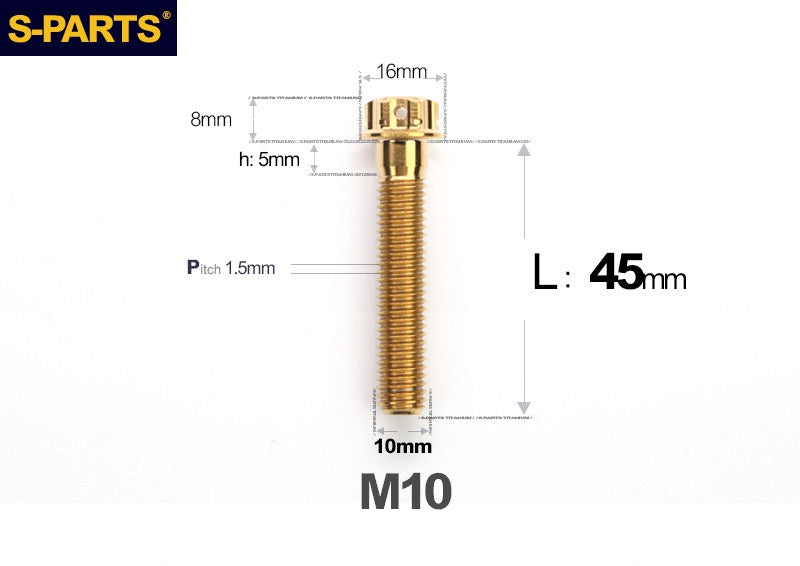

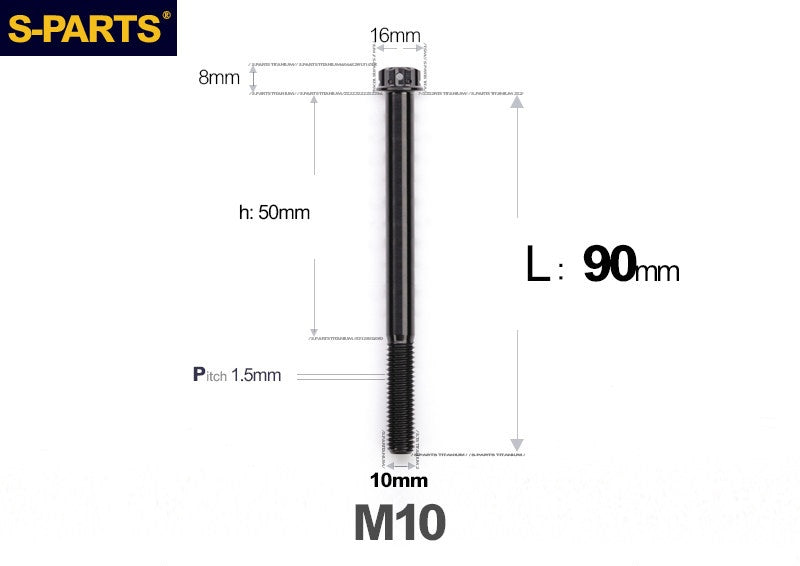

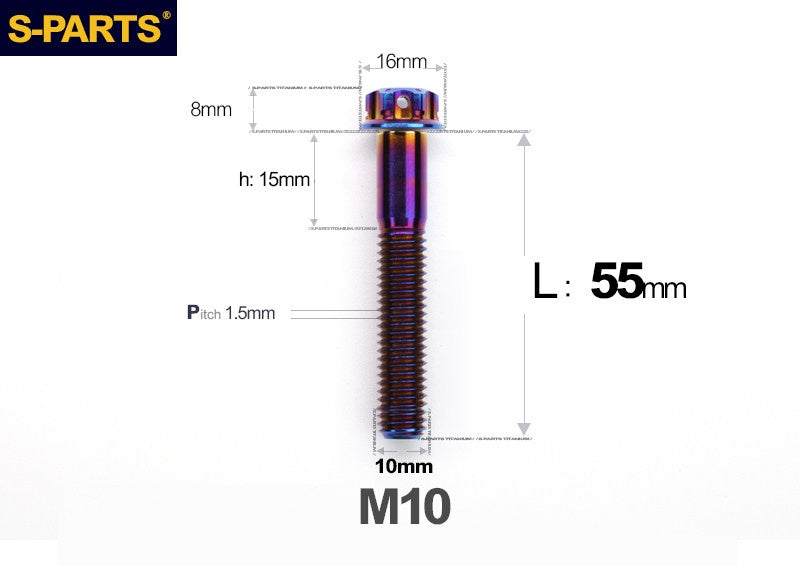

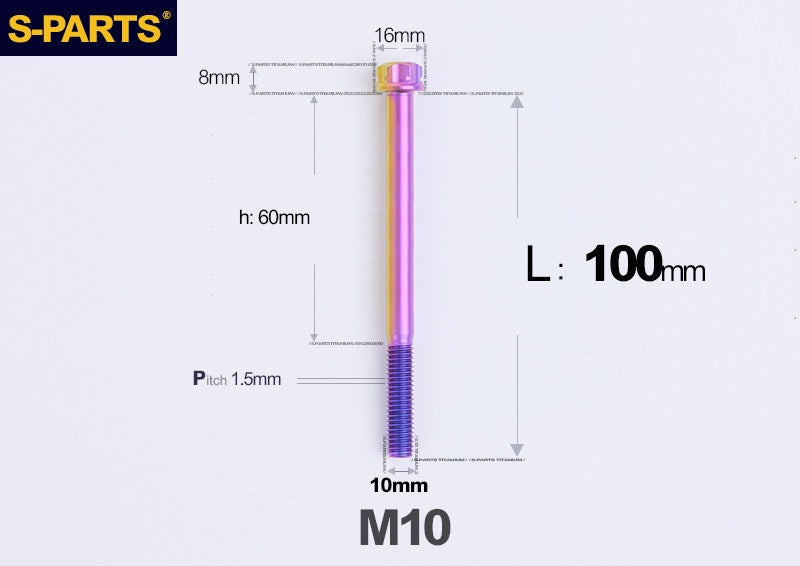

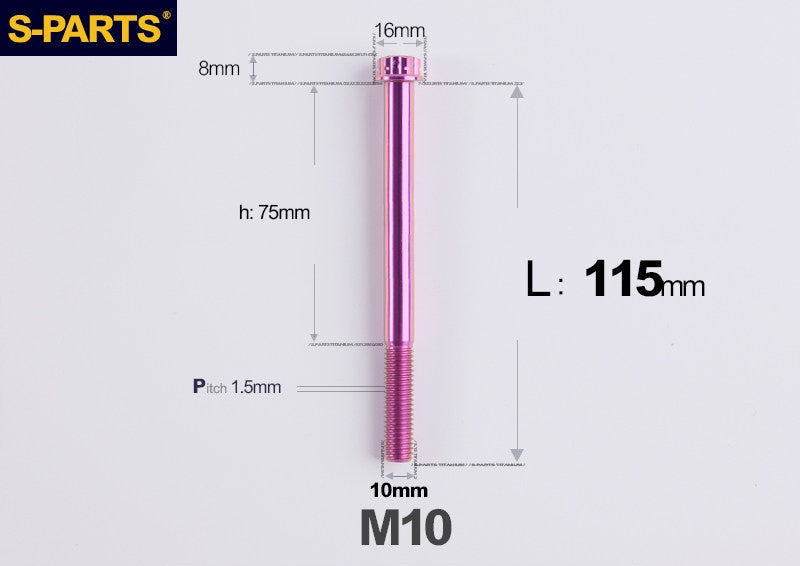

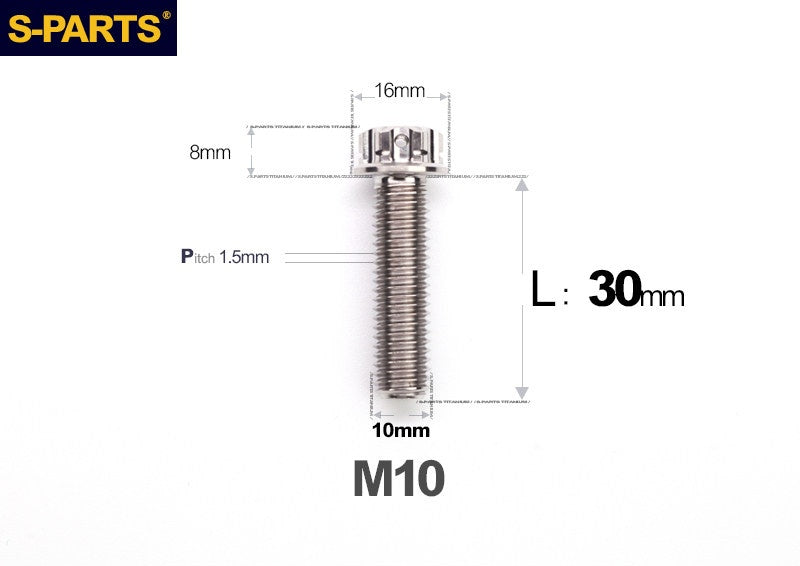

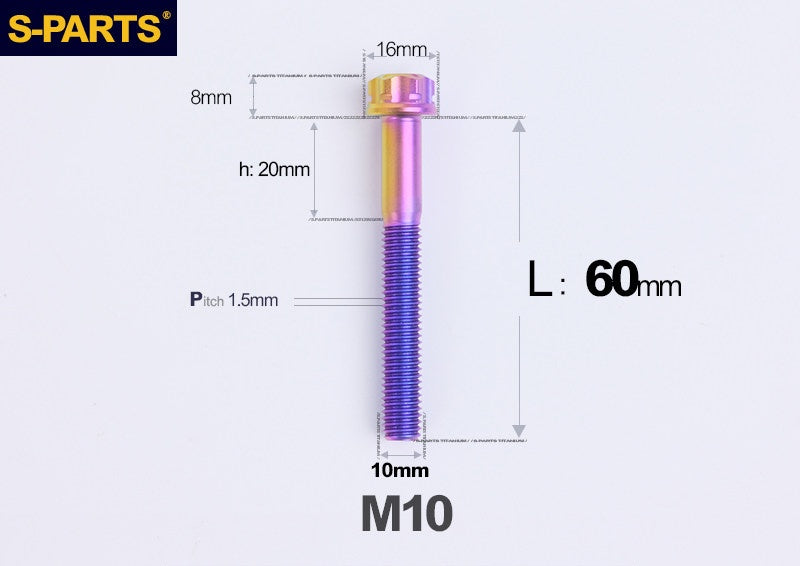

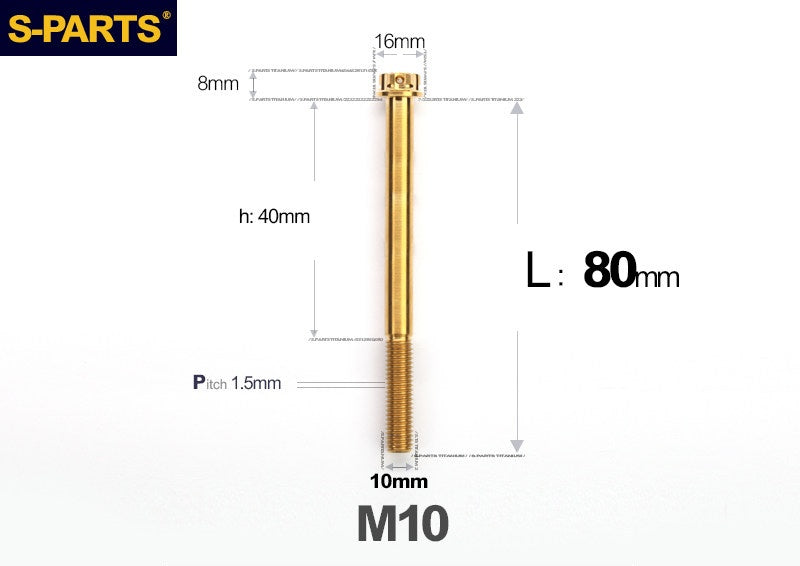

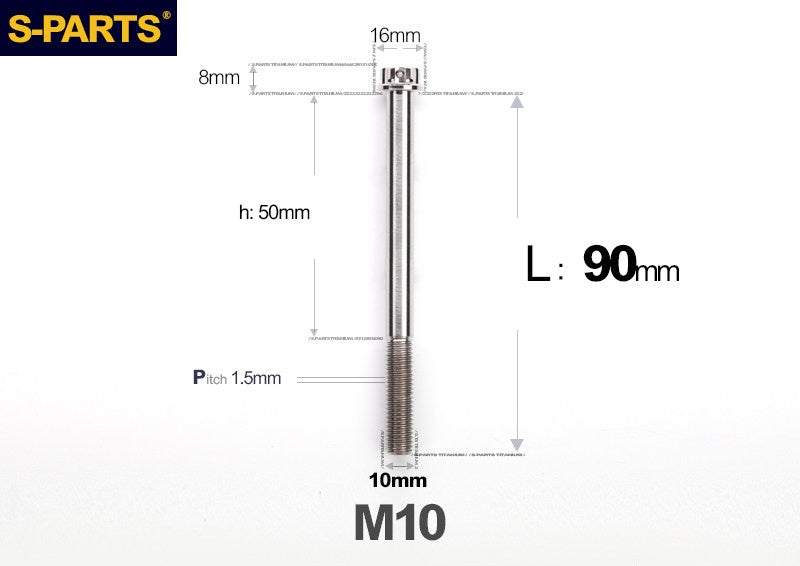

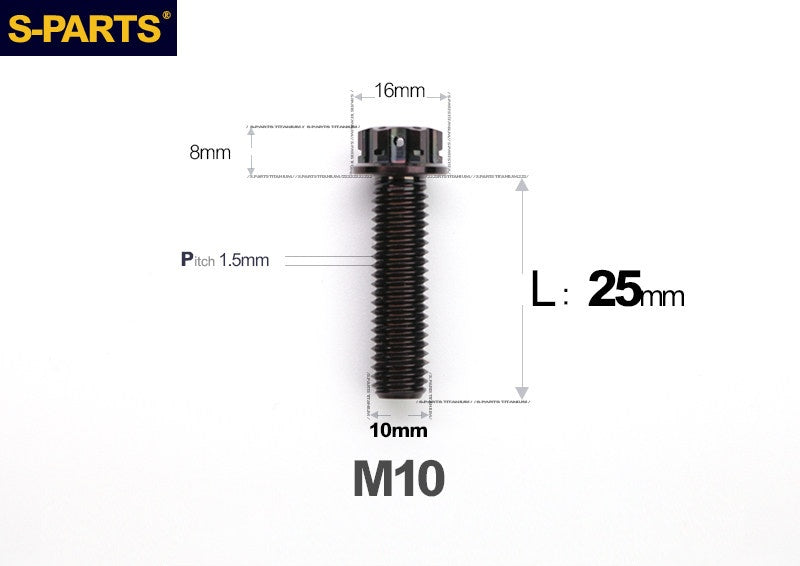

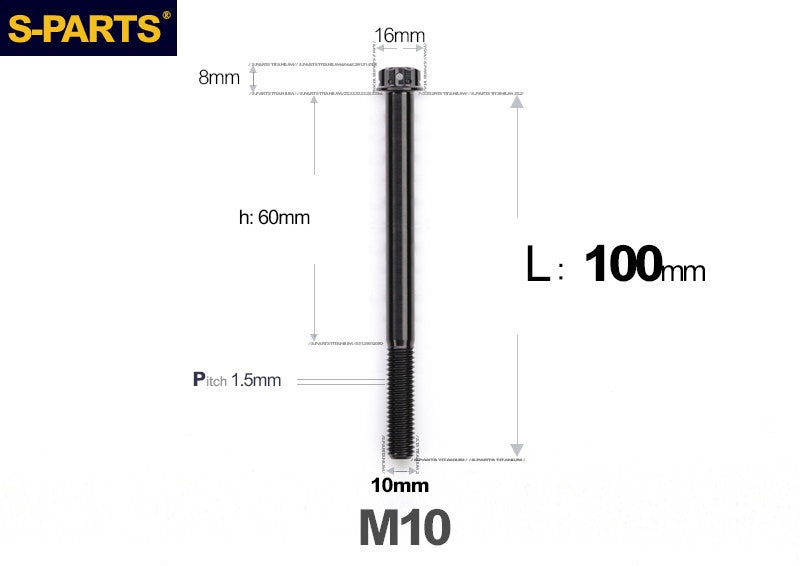

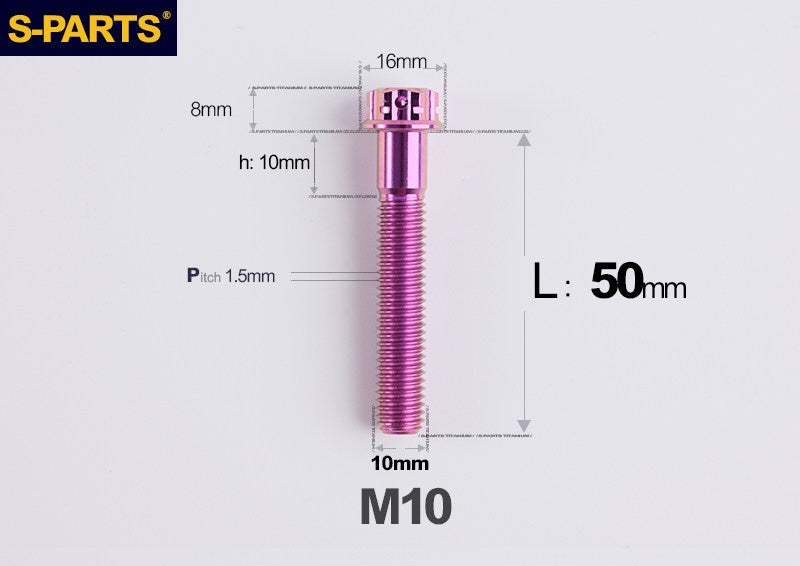

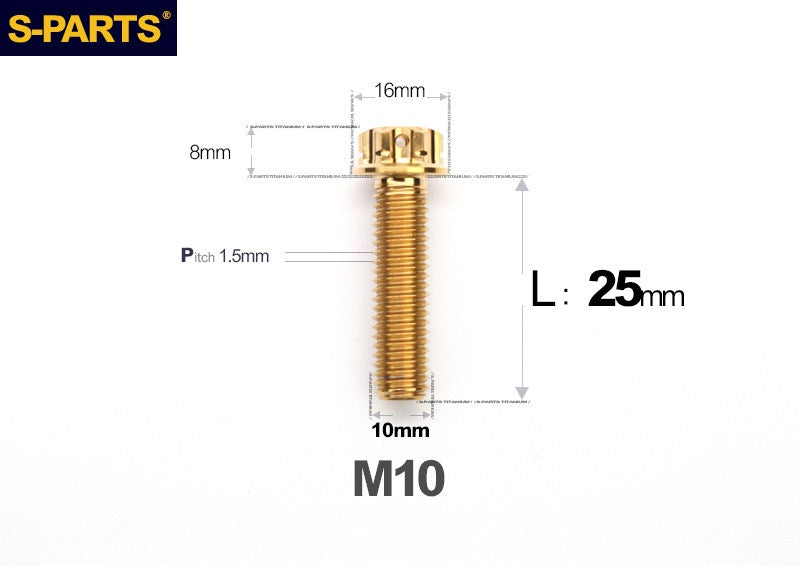

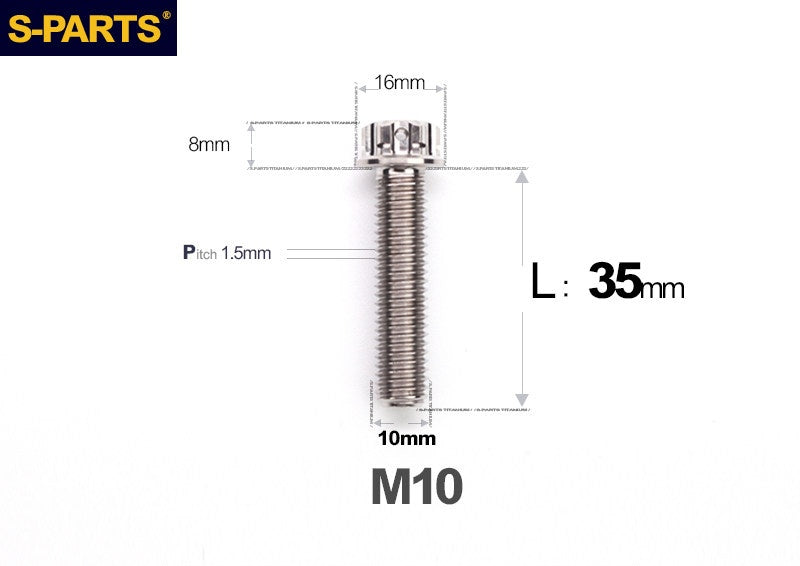

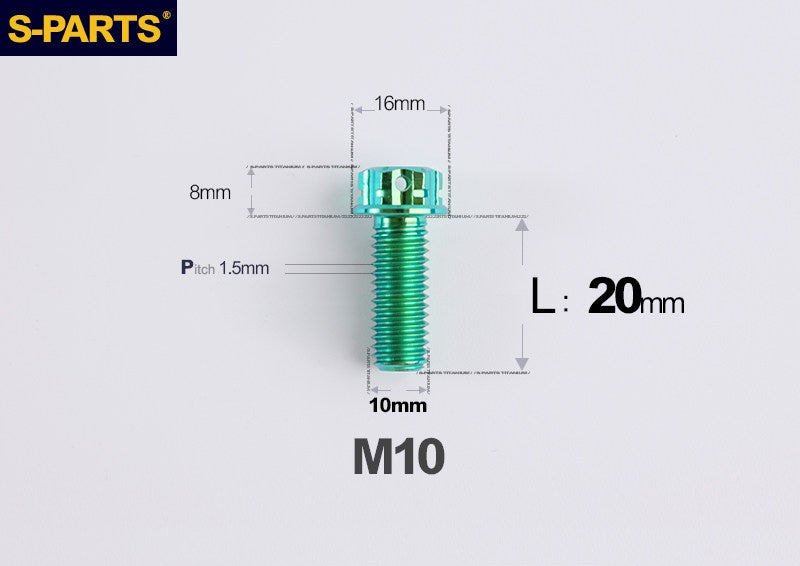

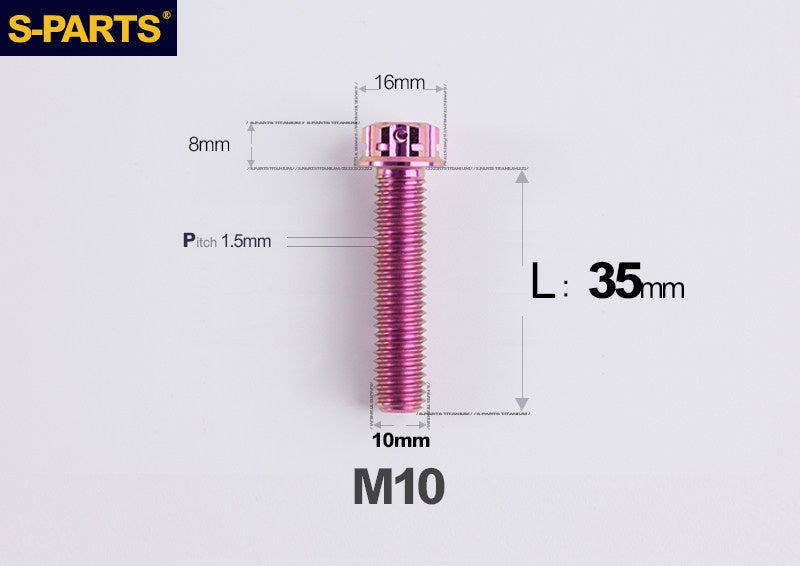

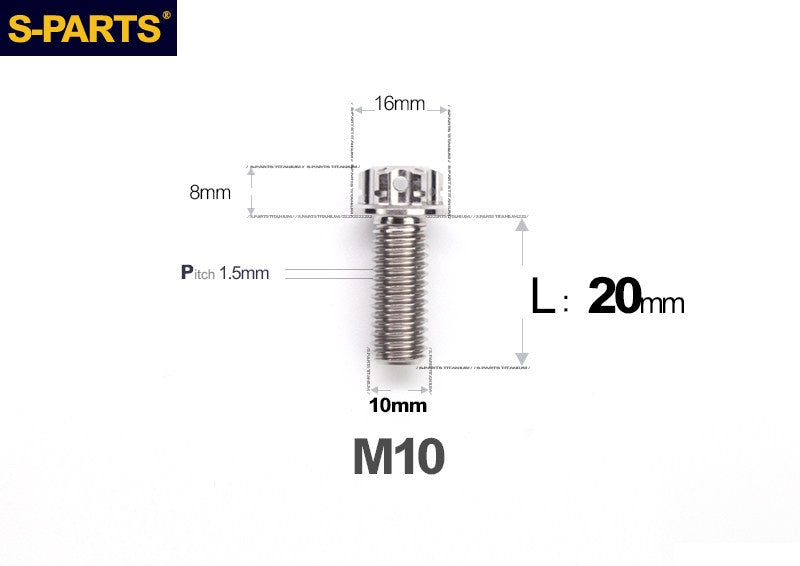

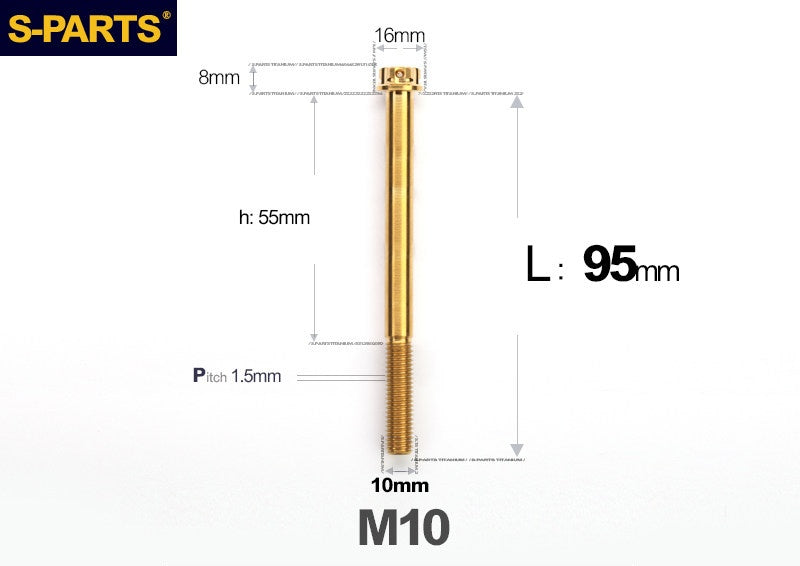

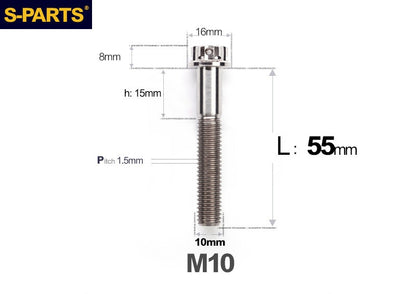

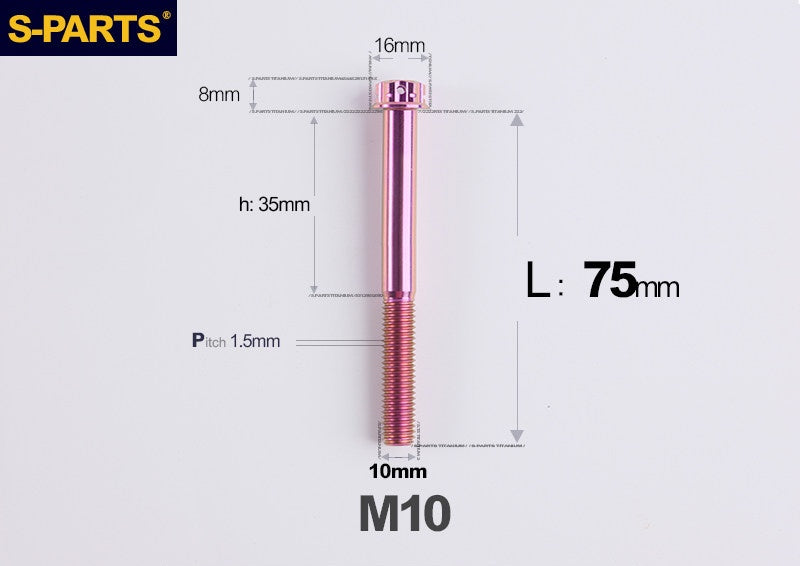

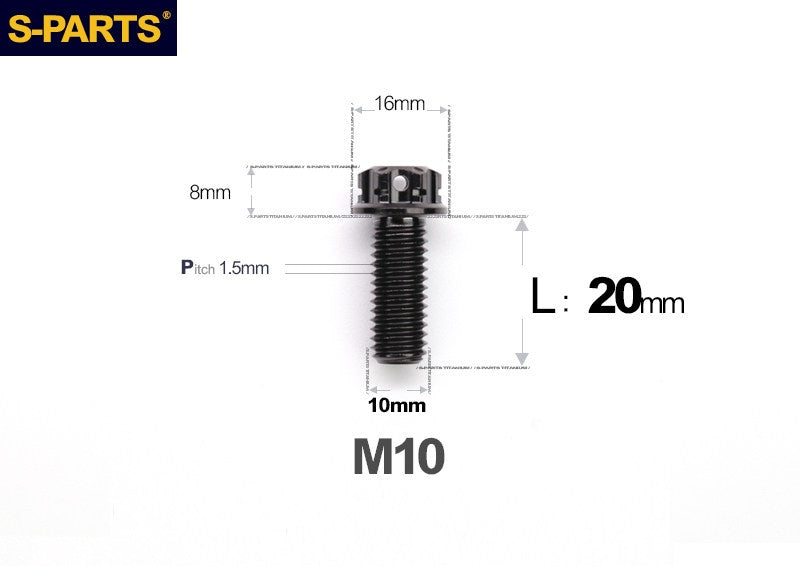

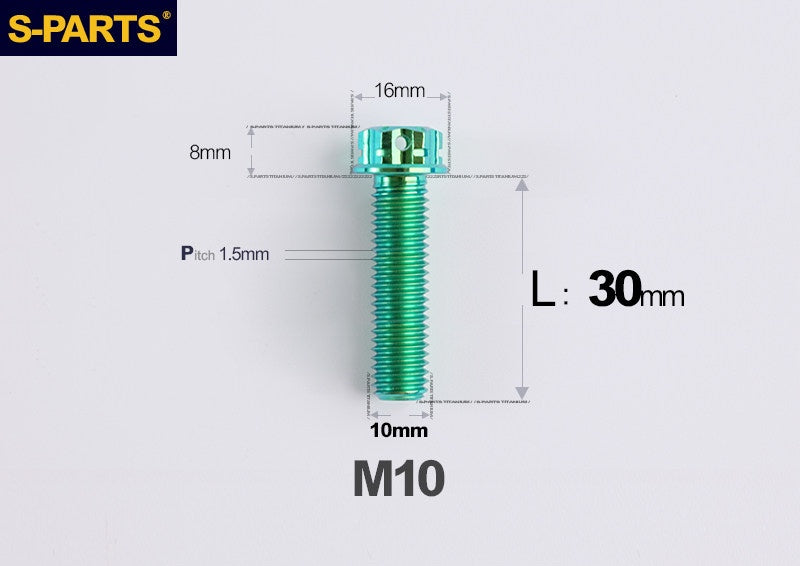

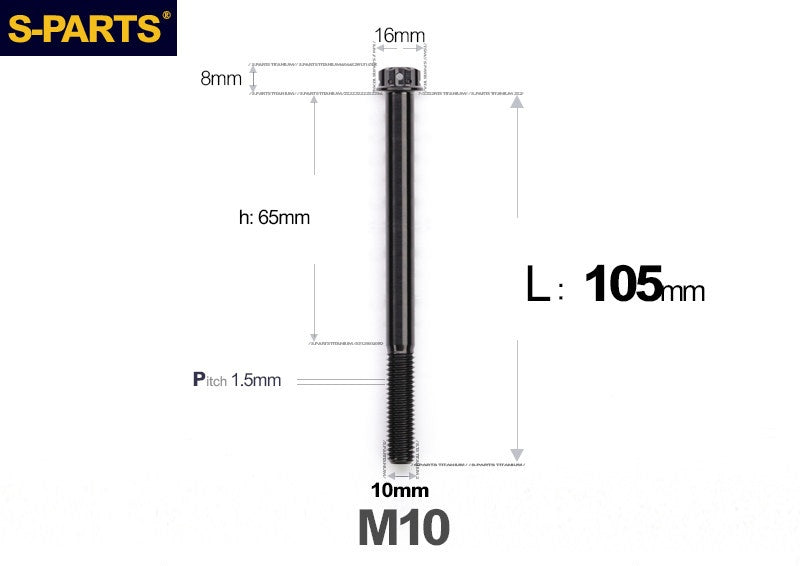

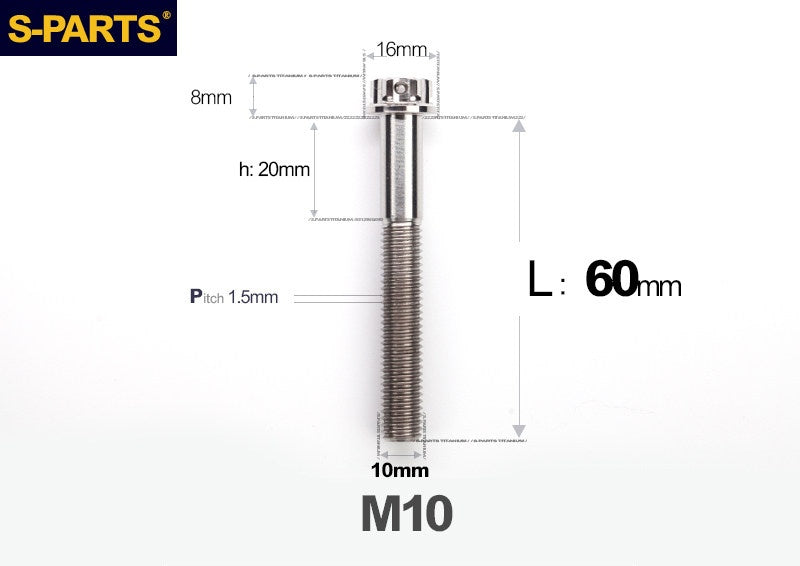

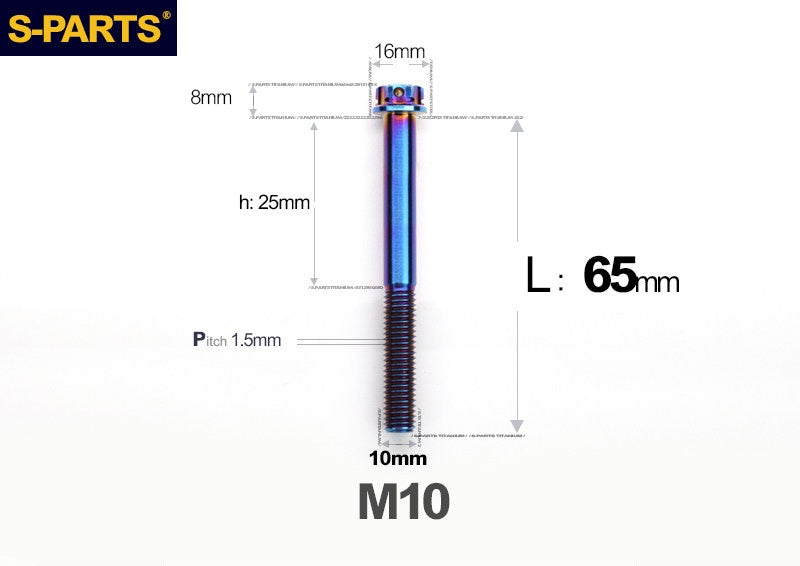

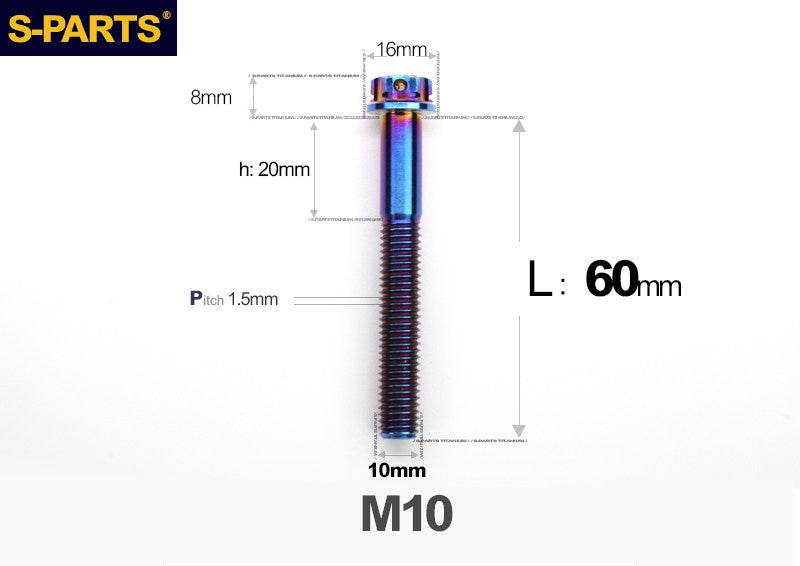

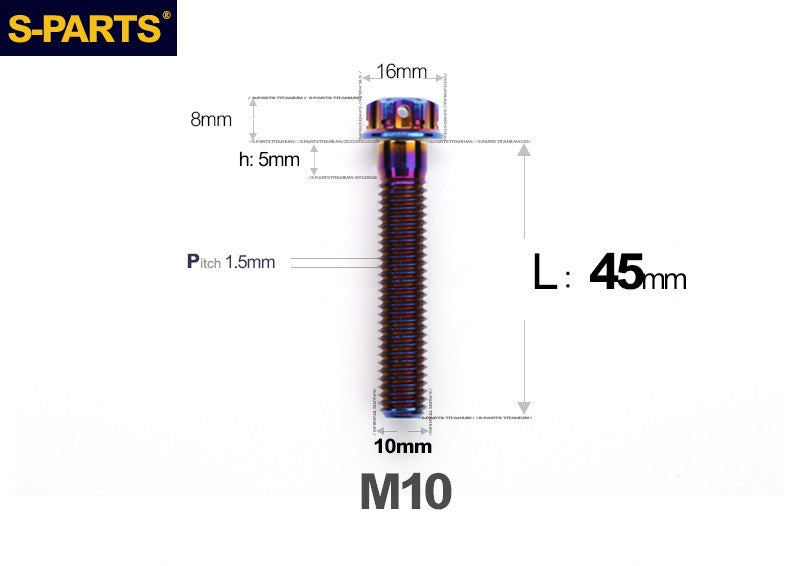

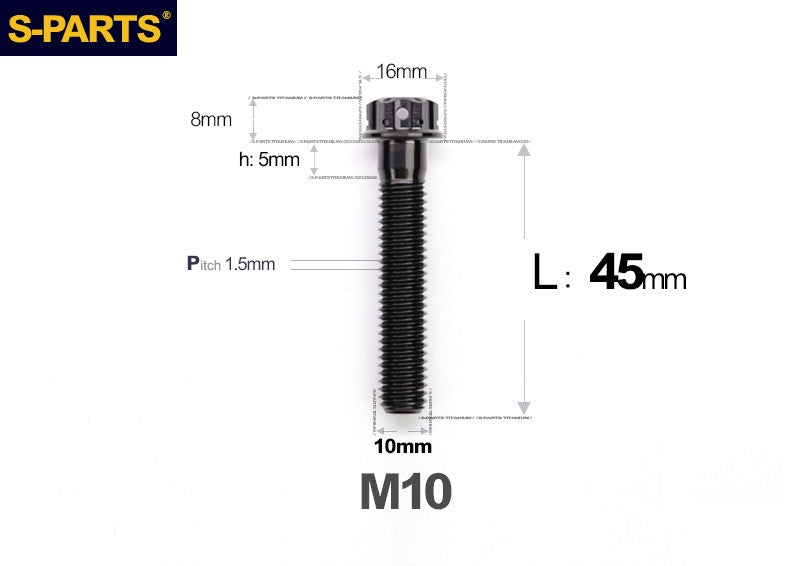

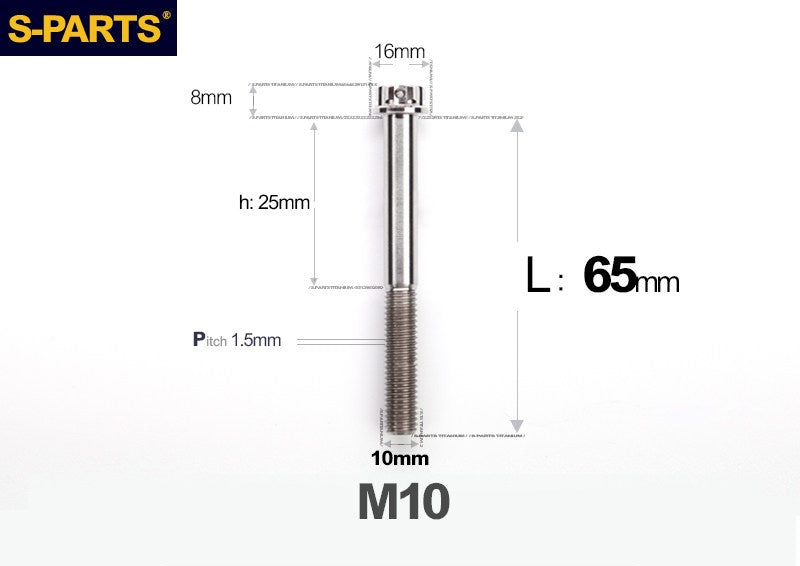

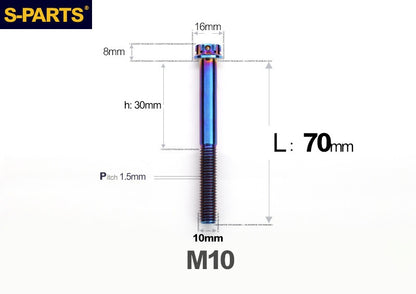

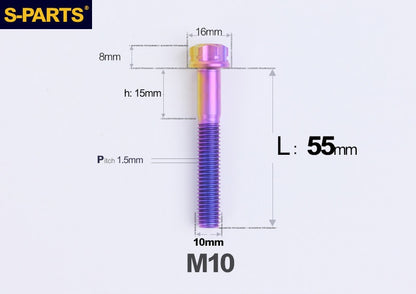

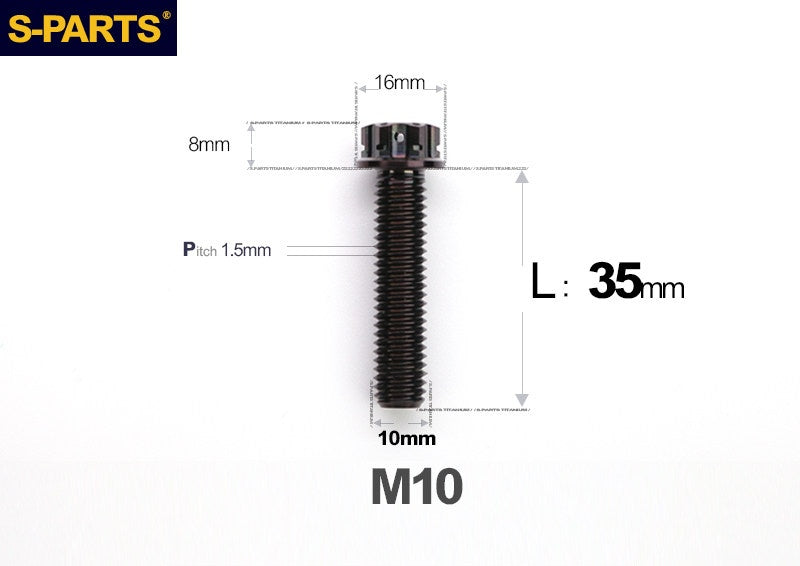

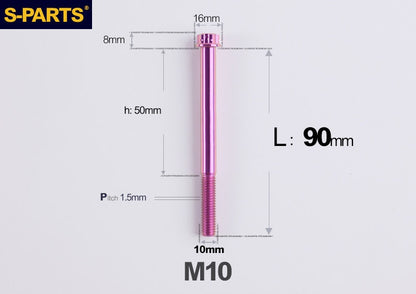

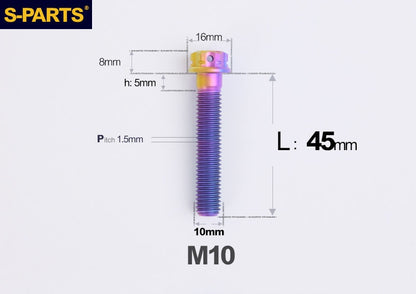

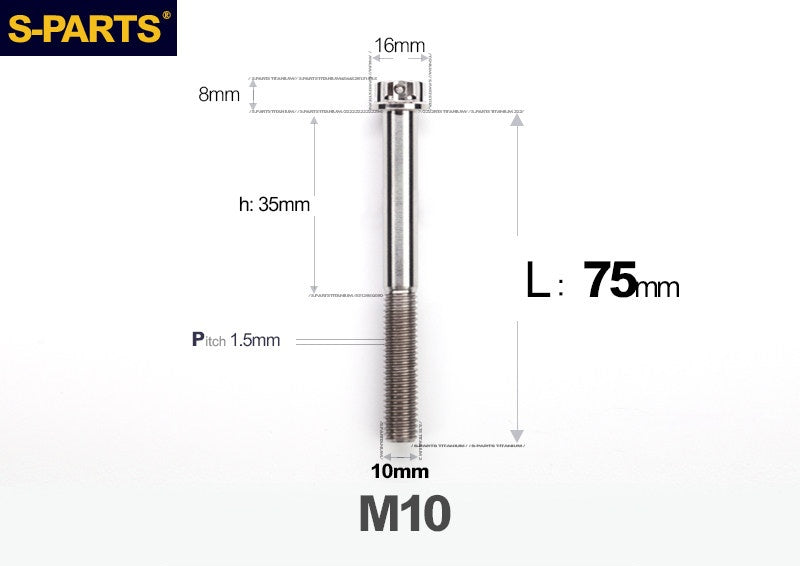

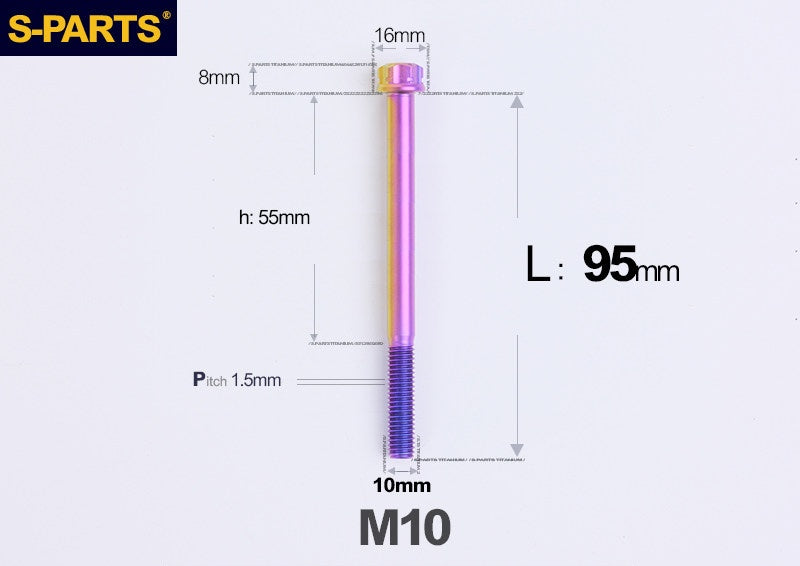

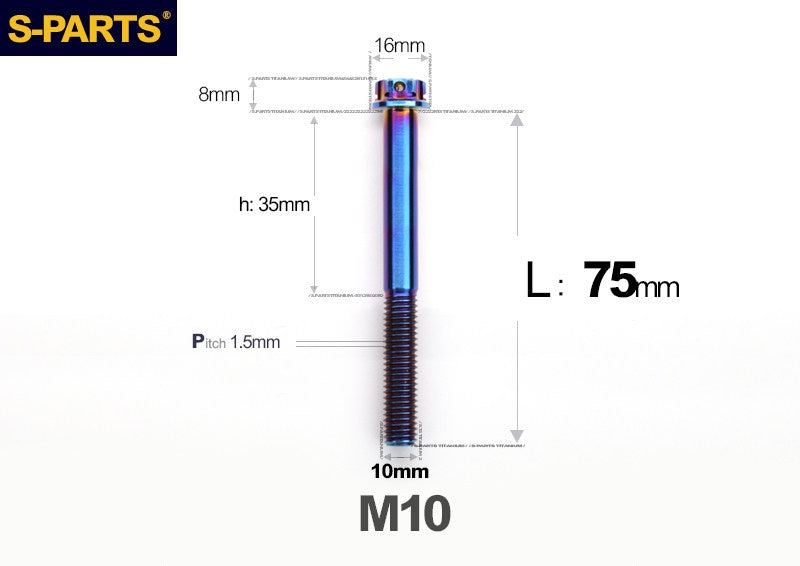

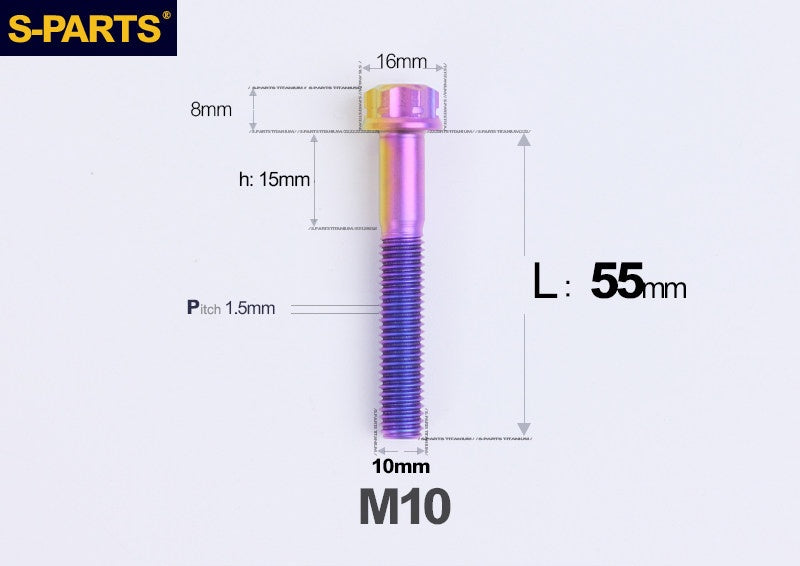

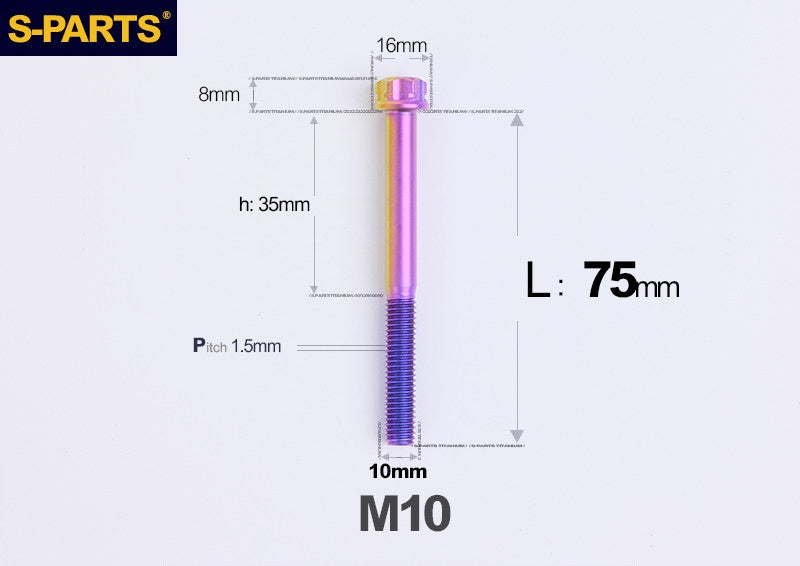

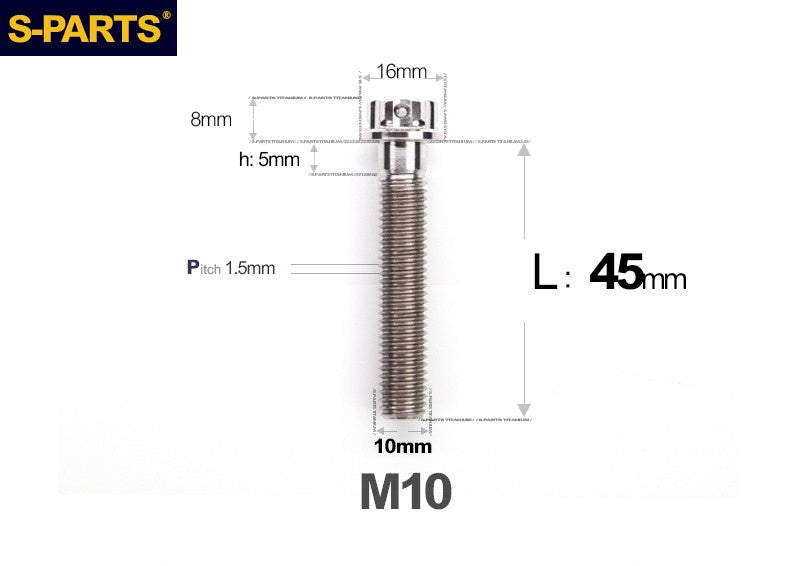

Length L (mm)	Head Diameter D (mm)	Head Height H (mm)	Weight (g / pc)
20	16	8	9.07
25	16	8	10.30
30	16	8	11.76
35	16	8	13.04
40	16	8	14.44
45	16	8	16.08
50	16	8	18.06
55	16	8	19.70
60	16	8	21.21
65	16	8	23.03
70	16	8	24.57
75	16	8	26.15
80	16	8	27.94
85	16	8	29.66
90	16	8	31.52
95	16	8	32.78
100	16	8	34.23
105	16	8	35.63
110	16	8	37.03
115	16	8	38.52
120	16	8	40.30

Warning

Compatibility Check: Due to the complexity of original equipment manufacturer (OEM) parts' models and batches, there may be instances where this product is incompatible.

Upon receiving this product, please compare it with the OEM specifications to ensure compatibility before installation.

Torque Specifications: Install this product strictly according to the torque values specified in the OEM parts manual.Installation Issues: If you encounter any discrepancies with the OEM specifications or face difficulties at the initial stage of installation, stop immediately and contact customer service for assistance with returns or exchanges.

No Forced Installation: Do not force installation under any circumstances.Liability: Any damages resulting from forced installation or unauthorized modifications of this product (or its components) will be the sole responsibility of the buyer.

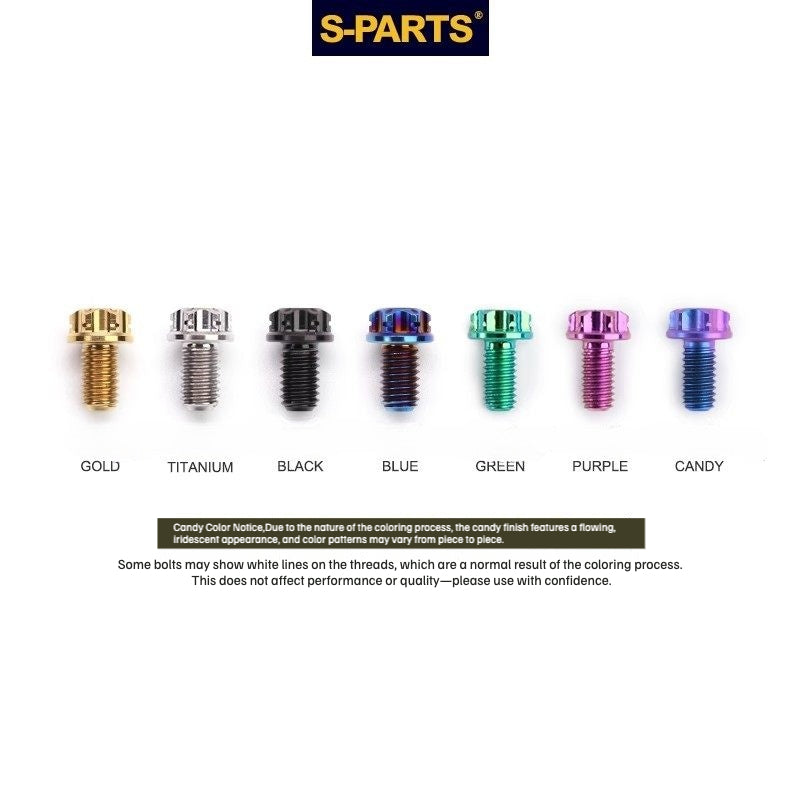

About Color Variations

All products are photographed to accurately represent the colors you will see upon receipt.

Due to differences in lighting, angles, or screen settings, slight color variations may occur.

The actual product should be considered the standard.For "colored" and "blue" products, the coloring process may result in uneven color distribution, making each product unique.
