SPARTS M10 x P1.5 Titanium Bolt L15-120 | TC4 Grade 5 Titanium Fastener

S-Grade TC4 Titanium Fastener | High-Strength Lightweight Upgrade Bolt

Stronger. Lighter.

Only genuine S-PARTS S-Grade TC4 titanium alloy (Ti-6Al-4V) can deliver the confidence, reliability, and performance riders expect.

Under the same specifications, SPARTS TC4 titanium bolts offer strength comparable to Class 10.9 steel fasteners while maintaining a weight close to aluminum, achieving the ideal balance between strength and lightweight performance.

Widely used for motorcycle customization, racing upgrades, and high-performance mechanical applications.

Suitable Applications

Brake Systems
Engine Components
Frame Mounting Points
Body Panels & Fairings
Suspension Systems
Other M10 × P1.5 Mounting Locations

Product Specifications

Brand: SPARTS
Series: A3 Series
Size: M10 × P1.5
Length: L15–120 mm
Head Style: Standard Head
Material: S-Grade TC4 Titanium Alloy (Ti-6Al-4V / Grade 5 Titanium)
Surface Finish: Candy Color

Specification	Length L (mm)	Weight (g)
M10×20 D16	20	9.07
M10×25 D16	25	10.30
M10×30 D16	30	11.76
M10×35 D16	35	13.04
M10×40 D16	40	14.44
M10×45 D16	45	16.08
M10×50 D16	50	18.06
M10×55 D16	55	19.70
M10×60 D16	60	21.21
M10×65 D16	65	23.03
M10×70 D16	70	24.57
M10×75 D16	75	26.15
M10×80 D16	80	27.94
M10×85 D16	85	29.66
M10×90 D16	90	31.52
M10×95 D16	95	32.78
M10×100 D16	100	34.23
M10×105 D16	105	35.63
M10×110 D16	110	37.03
M10×115 D16	115	38.52
M10×120 D16	120	40.30

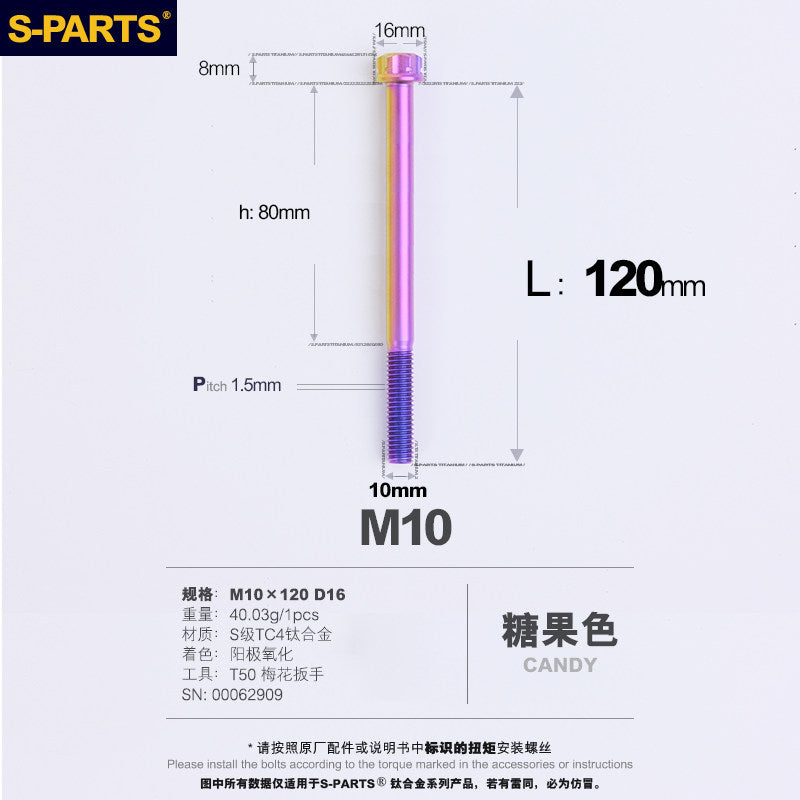

Note: This series features a head diameter of 16mm, head height of 8mm, thread pitch of P1.5mm, uses a T50 Torx wrench, and the coloring process is vacuum nitriding.

Installation Instructions

Please install the bolt and related components according to the torque specifications provided in the OEM service manual or manufacturer's instructions.

The use of a calibrated torque wrench is strongly recommended.

For titanium fasteners, anti-seize lubricant is recommended where appropriate to help prevent thread galling.

Package Includes

1 × SPARTS M10 × P1.5 L15-120 A3 Series Titanium Bolt

Warning

Compatibility Check: Due to the complexity of original equipment manufacturer (OEM) parts' models and batches, there may be instances where this product is incompatible.

Upon receiving this product, please compare it with the OEM specifications to ensure compatibility before installation.

Torque Specifications: Install this product strictly according to the torque values specified in the OEM parts manual.Installation Issues: If you encounter any discrepancies with the OEM specifications or face difficulties at the initial stage of installation, stop immediately and contact customer service for assistance with returns or exchanges.

No Forced Installation: Do not force installation under any circumstances.Liability: Any damages resulting from forced installation or unauthorized modifications of this product (or its components) will be the sole responsibility of the buyer.

About Color Variations

All products are photographed to accurately represent the colors you will see upon receipt.

Due to differences in lighting, angles, or screen settings, slight color variations may occur.

The actual product should be considered the standard.For "colored" and "blue" products, the coloring process may result in uneven color distribution, making each product unique.
